SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Shelves & Accessories

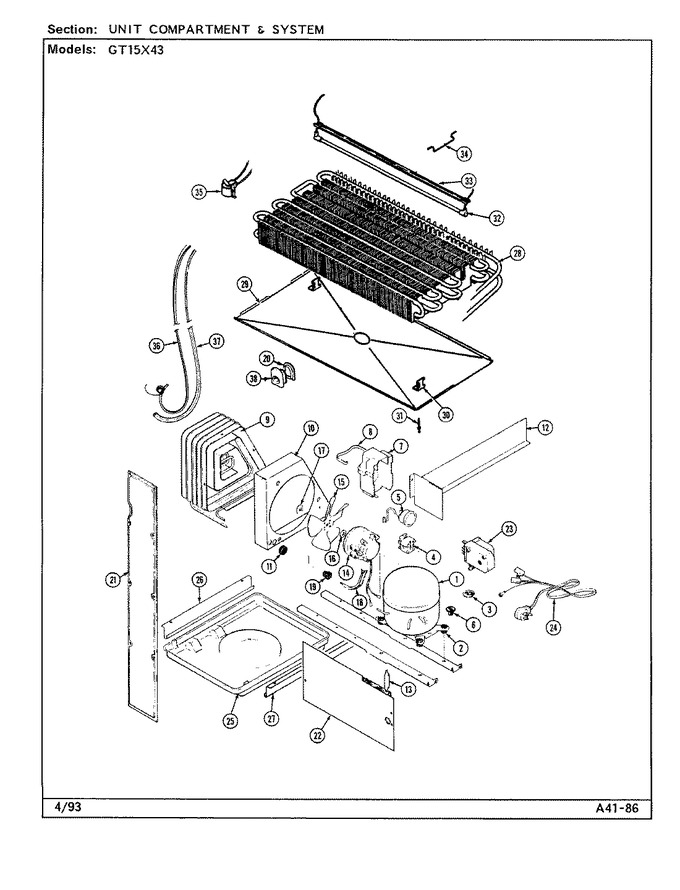

06 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12000027		Kit, Compressor		Appelez-nous	-
2	17245-4		Grommet, Compressor		Appelez-nous	-
3	WP681414		Screw, Compressor Rail   (Replaces: 414011-1)			Immediately	$ 7.07
3	52778-2		Clip		Appelez-nous	-
4	68857-4		Relay, Start		Appelez-nous	-
5	69105-11		Overload		Appelez-nous	-
6	52656-2		Plug, Compressor		Appelez-nous	-
7	69754-1		Cover, Terminal		Appelez-nous	-
8	65886-1		Clip, Terminal Cover		Appelez-nous	-
9	60408-1		U-nut, Condenser		Appelez-nous	-
9	RA43871-1		Condenser		Appelez-nous	-
10	66228-1		Shroud, Condenser		Appelez-nous	-
11	414001-1		Screw		Appelez-nous	-
11	53351-1		Grommet, Condenser Tubing		Appelez-nous	-
12	66493-1		Baffle, Air Divider		Appelez-nous	-
13	WPW10143759		Drier   (Replaces: 13900)			Immediately	$ 27.70
14	67560-11		Motor, Condenser Fan		Appelez-nous	-
14	65275-33		Screw		Appelez-nous	-
15	WP12587601		Blade, Condenser Fan   (Replaces: 69958-1)				$ 114.00
16	19913-4		Washer		Appelez-nous	-
17	WP486692		Clip, Fan Blade   (Replaces: 19914)				$ 7.04
18	66225-1		Bracket, Fan Motor		Appelez-nous	-
19	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
19	56933-1		Grommet, Bracket		Appelez-nous	-
20	60069-1		Retainer, Entry Grommet		Appelez-nous	-
21	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
21	60110-1		Wire Cover		Appelez-nous	-
22	WP488729		Screw   (Replaces: 9986-45)			Immediately	$ 7.01
22	66338-1		Cover, Unit Compartment		Appelez-nous	-
23	66128-4		Timer, Defrost		Appelez-nous	-
23	405007-1		Screw		Appelez-nous	-
24	52890-2		Cord, Power		Appelez-nous	-
25	68236-1		Pan, Drain				$ 89.75
26	60555-1		Rail, Drain Pan (rt)		Appelez-nous	-
27	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
27	60555-2		Rail, Drain Pan (lt)		Appelez-nous	-
28	69822-1		Evaporator		Appelez-nous	-
29	69118-1		Tray, Drip		Appelez-nous	-
30	60108-1		Bracket, Coil To Tray		Appelez-nous	-
31	WP210720		Rivet   (Replaces: 26397-9)				$ 12.14
32	60106-37		Heater, Defrost		Appelez-nous	-
33	60109-4		Shield, Defrost Heater		Appelez-nous	-
34	68935-1		Clip		Appelez-nous	-
35	WP52085-28		Thermostat, Defrost   (Replaces: 52085-28)				$ 107.65
36	65013-4		Heat Exchanger		Appelez-nous	-
37	WP2205813		Wire Tie   (Replaces: 66223-1)				$ 6.95
37	65398-1		Cover, Heat Exchanger		Appelez-nous	-
38	70075-1		Wire Harness, Main		Appelez-nous	-
38	60177-2		Retainer, Main Wire Harness		Appelez-nous	-
38	60068-1		Grommet, Tube Entry		Appelez-nous	-
39	108340-1		Manual, Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
