SELECT A DIAGRAM

01 - Freezer Compartment

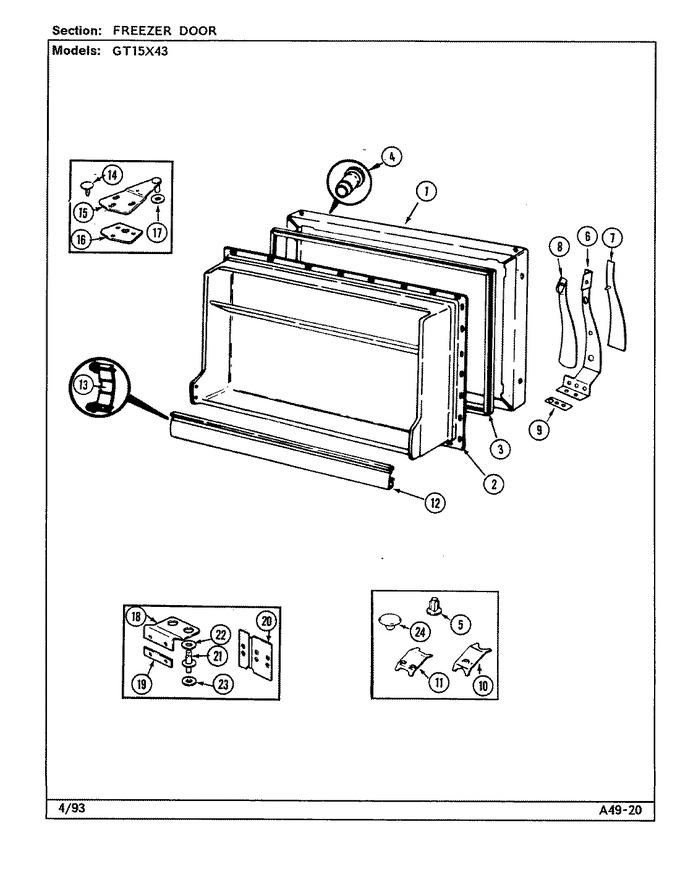

02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Shelves & Accessories


06 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72345-8-WW		Panel, Frz. Door (wht)		Appelez-nous	-
2	69464-1		Liner		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	70025-1		Gasket, Frz. Door		Appelez-nous	-
4	29356-1		Retainer, Nameplate		Appelez-nous	-
4	65275-48		Screw		Appelez-nous	-
4	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
5	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
6	65275-57		Screw		Appelez-nous	-
6	69300-1		Handle, Door		Appelez-nous	-
7	68959-1		Insert		Appelez-nous	-
8	60445-3		Insert, Handle (back)		Appelez-nous	-
8	65275-53		Screw		Appelez-nous	-
9	68776-1		Shim Handle----na		Appelez-nous	-
9	69835-1		Shim, Handle		Appelez-nous	-
10	56209-3		Clip, Stop Screw		Appelez-nous	-
11	60123-2		Clip, Stop Screw		Appelez-nous	-
12	WP61003045		Trim, Door Shelf   (Replaces: 65151-95)				$ 129.55
13	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
14	56144-1		Plugbutton		Appelez-nous	-
15	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
15	53709-24		Hinge, Upper		Appelez-nous	-
16	65031-1		Shim, Upper Hinge		Appelez-nous	-
17	54233-2		Washer		Appelez-nous	-
18	65275-62		Screw		Appelez-nous	-
18	68811-3		Hinge, Center		Appelez-nous	-
19	69515-1		Shim, Center Hinge		Appelez-nous	-
20	69419-1		Tapping Plate, Center Hinge		Appelez-nous	-
21	69517-1		Pin, Center Hinge		Appelez-nous	-
22	67483-6		Washer		Appelez-nous	-
23	54233-7		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
