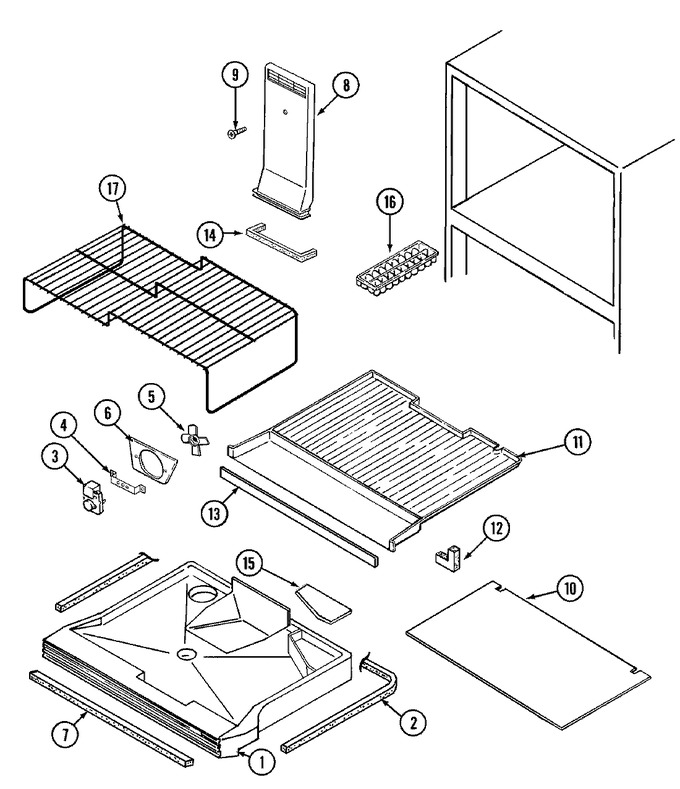

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Shelves & Accessories


08 - Unit Compartment & System


09 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61001096		Tray, Styrofoam Mullion	10	Appelez-nous	-
1	68946-9		Seal, Tray Perimeter (4 5/8``)	10	Appelez-nous	-
2	69414-1		Seal, Mullion Tray	10	Appelez-nous	-
3	406062-1		Screw	10	Appelez-nous	-
3	69106-3		Motor, Evaporator Fan	10	Appelez-nous	-
4	W11233072		Screw   (Replaces: 400015-36)	10		Immediately	$ 12.62
4	64856-1		Bracket, Fan Motor	10	Appelez-nous	-
5	69107-1		Blade, Evaporator Fan	10	Appelez-nous	-
6	60608-2		Orifice, Fan Blade	10	Appelez-nous	-
7	61001488		Seal, Mullion Tray (front)	10	Appelez-nous	-
8	61001523		Tunnel, Air	10	Appelez-nous	-
9	W11233072		Screw   (Replaces: 400015-31)	10		Immediately	$ 12.62
10	66403-1		Cover, Evaporator	10	Appelez-nous	-
11	12001055		Kit, Anti Sweat	10	Appelez-nous	-
11	69395-1		Bottom, Frz.	10	Appelez-nous	-
12	69563-1		Seal, Frost Chest Bottom	10	Appelez-nous	-
13	69413-1		Magnet	10	Appelez-nous	-
14	66325-37		Seal, Air Tunnel	10	Appelez-nous	-
15	61664804		Cover, Plenum	10	Appelez-nous	-
16	WP841180A		Tray, Ice   (Replaces: 59281-2)	10		Immediately	$ 41.00
17	70030-1		Shelf	10	Appelez-nous	-
