SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Shelves & Accessories


08 - Unit Compartment & System


09 - Wiring Information

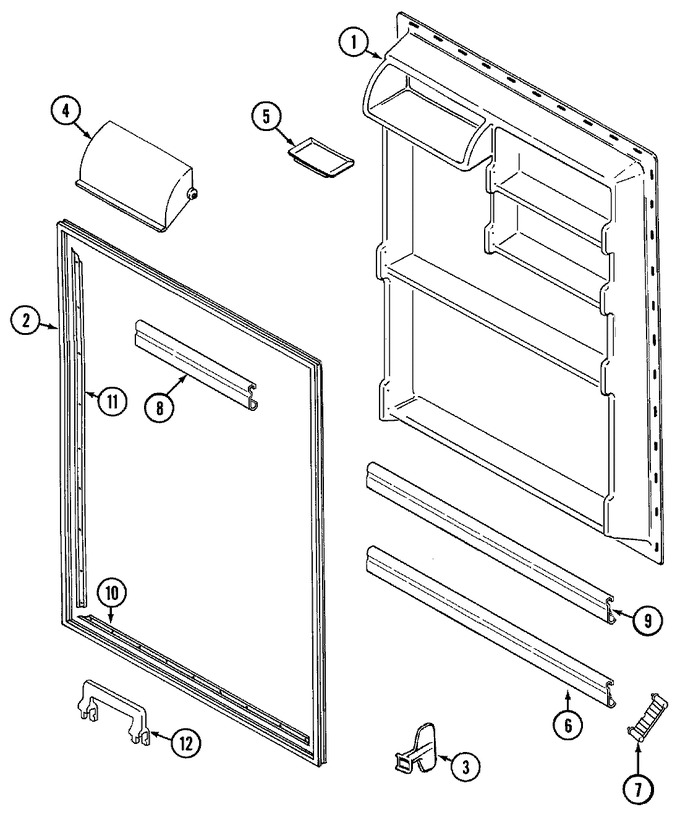

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61001493		Liner, F.f. Door	10	Appelez-nous	-
1	65275-5		Screw	10	Appelez-nous	-
2	70025-4		Gasket	10			$ 153.02
3	70114-1		Organizer, Shelf	10	Appelez-nous	-
4	69058-29		Door, Dairy	10	Appelez-nous	-
5	29936-2		Tray, Butter	10	Appelez-nous	-
6	WP70111-108		Trim, Shelf   (Replaces: 70111-45)	10		Immediately	$ 104.35
7	70197-1		Retainer, Shelf Trim	10		Immediately	$ 14.18
8	WP70111-108		Trim, Door   (Replaces: 70111-31)	10		Immediately	$ 104.35
9	WP70111-108		Trim, Shelf   (Replaces: 70111-42)	10		Immediately	$ 104.35
10	69999-4		Retainer, F.f Gasket (top/btm)	10	Appelez-nous	-
11	69999-8		Retainer, F.f. Gasket (side)	10	Appelez-nous	-
12	70112-1		Retainer, Bottle	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
