SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Shelves & Accessories


08 - Unit Compartment & System


09 - Wiring Information

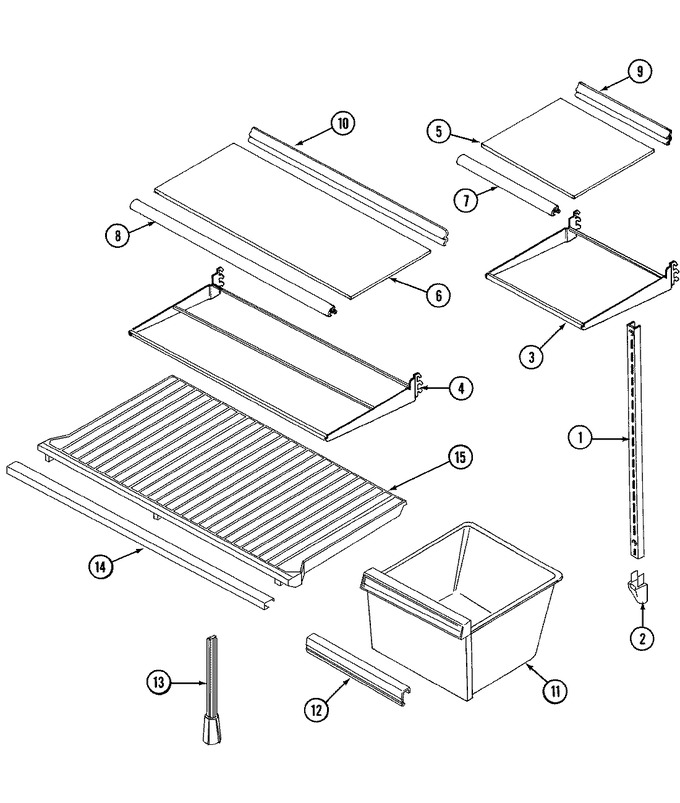

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-7		Rail, Shelf Support (lt)	10	Appelez-nous	-
1	400037-28		Screw	10	Appelez-nous	-
1	60096-8		Rail, Shelf Support (rt)	10	Appelez-nous	-
1	60096-9		Rail, Shelf Support (center)	10	Appelez-nous	-
2	60340-1		End Cap, Center Rail	10	Appelez-nous	-
3	70106-1		Shelf, Split	10	Appelez-nous	-
4	70106-3		Frame, Full Shelf	10	Appelez-nous	-
5	68139-20		Glass, Split Shelf	10	Appelez-nous	-
6	68139-18		Glass, Full Shelf	10	Appelez-nous	-
7	61001655		Trim, Shelf (front)	10	Appelez-nous	-
8	61001661		Trim, Shelf (front)	10	Appelez-nous	-
9	70110-1		Trim, Shelf (rear)	10	Appelez-nous	-
10	70110-6		Trim, Shelf (rear)	10	Appelez-nous	-
11	68221-651		Pan, Crisper	10	Appelez-nous	-
12	70315-2		Trim, Pan Handle	10	Appelez-nous	-
13	12001957		Support, Crisper Shelf   (Replaces: 66105-4)	10			$ 3.35
14	61001522		Trim, Crisper Shelf	10	Appelez-nous	-
15	61001801		Shelf, Crisper (w/trim)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
