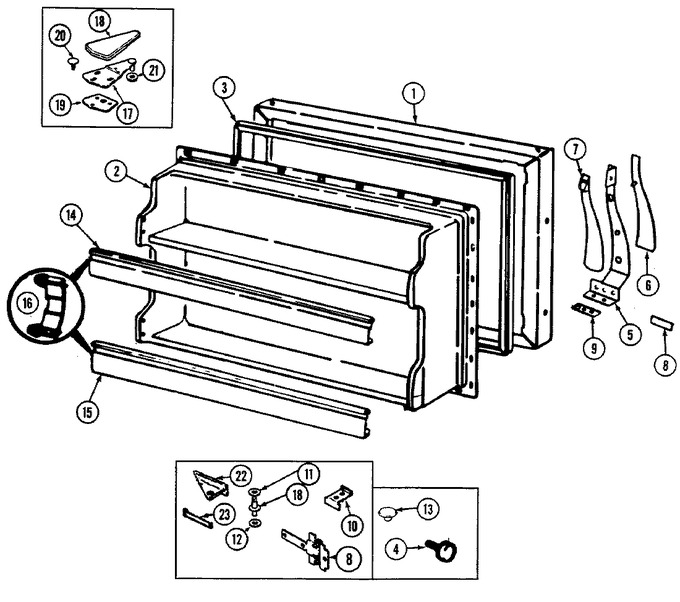

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72345-10-WW		Panel, Frz. Door (wht)	10	Appelez-nous	-
2	65275-5		Screw	10	Appelez-nous	-
2	69466-1		Liner	10	Appelez-nous	-
3	70025-3		Gasket	10	Appelez-nous	-
4	55782-10		Plug Button, Hdle & Door Stop	10	Appelez-nous	-
5	65275-57		Screw	10	Appelez-nous	-
5	69300-1		Handle, Door	10	Appelez-nous	-
6	68036-3		Insert (wht)	10	Appelez-nous	-
7	60580-5		Insert	10	Appelez-nous	-
8	65275-53		Screw	10	Appelez-nous	-
8	65275-61		Screw	10	Appelez-nous	-
8	69419-1		Tapping Plate, Center Hinge	10	Appelez-nous	-
9	69301-1		Shim, Handle	10	Appelez-nous	-
10	69256-2		Stop, Door	10	Appelez-nous	-
10	65275-48		Screw	10	Appelez-nous	-
11	67483-6		Washer	10	Appelez-nous	-
12	54233-7		Washer	10	Appelez-nous	-
13	67634-2		Plug Button, Hinge Cup (wht)	10	Appelez-nous	-
14	WP61003045		Trim, Shelf (21 15/16``)   (Replaces: 68832-110)	10			$ 129.55
15	WP61003045		Trim   (Replaces: 68832-59)	10			$ 129.55
16	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	10			$ 9.39
17	53709-20		Hinge, Upper	10	Appelez-nous	-
18	69517-1		Pin, Center Hinge	10	Appelez-nous	-
19	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
20	56144-13		Plug Button, Upper Hinge (wht)	10	Appelez-nous	-
21	54233-2		Washer	10	Appelez-nous	-
21	WP3-24838-048		Screw   (Replaces: 65275-52)	10			$ 7.00
22	69514-2		Hinge, Center	10	Appelez-nous	-
22	65275-62		Screw	10	Appelez-nous	-
23	70121-4		Cover, Upper Hinge (wht)	10	Appelez-nous	-
23	68048-7		Insert, Vinyl	10	Appelez-nous	-
23	69515-1		Shim, Center Hinge	10	Appelez-nous	-
