SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker


06 - Shelves & Accessories


07 - Unit Compartment & System

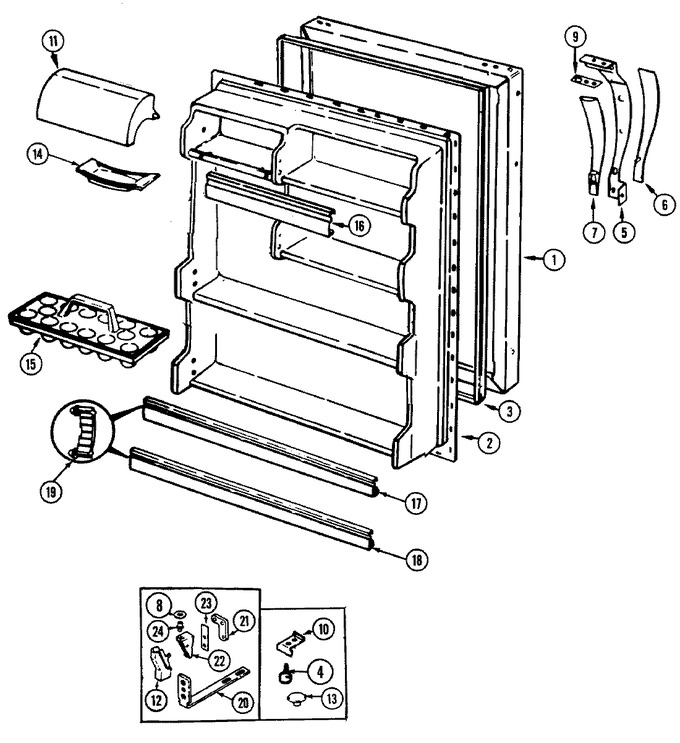

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72349-5-WW		Panel, Outer Door	10	Appelez-nous	-
2	65275-5		Screw	10	Appelez-nous	-
2	69445-1		Liner, F.f. Door	10	Appelez-nous	-
3	70025-4		Gasket	10			$ 153.02
4	55782-10		Plug Button, Hdle & Door Stop	10	Appelez-nous	-
5	69300-2		Handle, Door	10	Appelez-nous	-
5	65275-57		Screw	10	Appelez-nous	-
6	68036-3		Insert (wht)	10	Appelez-nous	-
7	60580-5		Insert	10	Appelez-nous	-
8	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
8	65275-53		Screw	10	Appelez-nous	-
9	69301-1		Shim, Handle	10	Appelez-nous	-
10	65275-48		Screw	10	Appelez-nous	-
10	69256-2		Stop, Door	10	Appelez-nous	-
11	69058-2		Door, Dairy	10	Appelez-nous	-
12	68978-4		Cover, Lower Hinge (wht)	10	Appelez-nous	-
13	67634-2		Plug Button, Hinge Cup (wht)	10	Appelez-nous	-
14	29936-2		Tray, Butter	10	Appelez-nous	-
15	60066-1		Tray, Egg	10	Appelez-nous	-
16	WP61003045		Trim, Shelf   (Replaces: 68832-102)	10			$ 129.55
17	WP61003045		Trim   (Replaces: 68832-59)	10			$ 129.55
18	WP61003045		Trim, Shelf (22 11/16``)   (Replaces: 68832-111)	10			$ 129.55
19	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	10			$ 9.39
20	414012-1		Screw	10	Appelez-nous	-
20	65275-66		Screw (no.10 X 1/2``)	10	Appelez-nous	-
20	69511-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
21	65275-59		Screw	10	Appelez-nous	-
21	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
22	69516-4		Hinge, Lower (zinc)	10	Appelez-nous	-
22	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
23	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
24	68048-7		Insert, Vinyl	10	Appelez-nous	-
24	64097-11		Organizer, Shelf	10	Appelez-nous	-
24	69845-1		Pin, Lower Hinge	10			$ 44.55

    View Diagram in Separate Window       Print Part List
