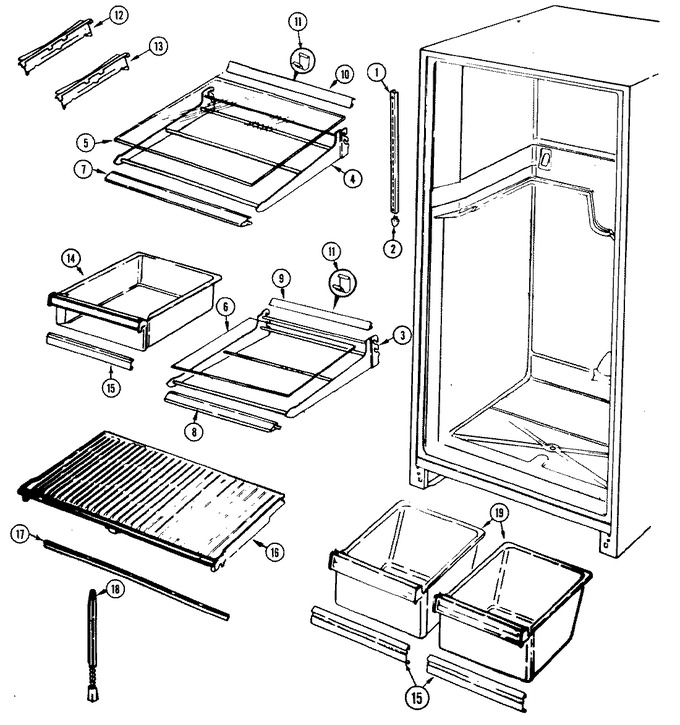

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60096-8 | Rail, Shelf Support (rt) | 10 |
|
- | ||||
| 1 | 60096-9 | Rail, Shelf Support (center) | 10 |
|
- | ||||
| 1 | 400037-28 | Screw | 10 |
|
- | ||||
| 1 | 60096-7 | Rail, Shelf Support (lt) | 10 |
|
- | ||||
| 2 | 60340-1 | End Cap, Center Rail | 10 |
|
- | ||||
| 3 | 60570-49 | Frame, Shelf | 10 |
|
- | ||||
| 4 | 60570-36 | Frame, Shelf | 10 |
|
- | ||||
| 5 | 68139-15 | Glass, Split Shelf | 10 |
|
- | ||||
| 5 | 68139-21 | Glass, Meat Shelf | 10 |
|
- | ||||
| 6 | 68139-20 | Glass, Split Shelf | 10 |
|
- | ||||
| 7 | 60414-80 | Trim, Split Shelf | 10 |
|
- | ||||
| 8 | 60414-82 | Trim, Shelf (front) | 10 |
|
- | ||||
| 9 | 65276-56 | Trim, Split Shelf (rear) | 10 |
|
- | ||||
| 10 | 65276-50 | Trim, Shelf | 10 |
|
- | ||||
| 11 | 66333-1 | Clip, Shelf Trim | 10 |
|
- | ||||
| 12 | 66813-1 | Rail, Meat Pan (lt) | 10 |
|
- | ||||
| 13 | 66814-1 | Rail, Meat Pan (rt) | 10 |
|
- | ||||
| 14 | 66636-110 | Pan, Meat | 10 |
|
- | ||||
| 15 | 60132-134 | Trim, Pan | 10 |
|
- | ||||
| 16 | 66644-2 | Shelf, Crisper | 10 |
|
- | ||||
| 17 | 60454-9 | Trim, Crisper Shelf | 10 |
|
- | ||||
| 18 | 12001957 | Support, Crisper Shelf (Replaces: 66105-1) | 10 |
|
$ 3.35 | ||||
| 19 | 68221-639 | Pan, Crisper | 10 |
|
- | ||||
| 19 | 68221-640 | Pan, Crisper | 10 |
|
- |
