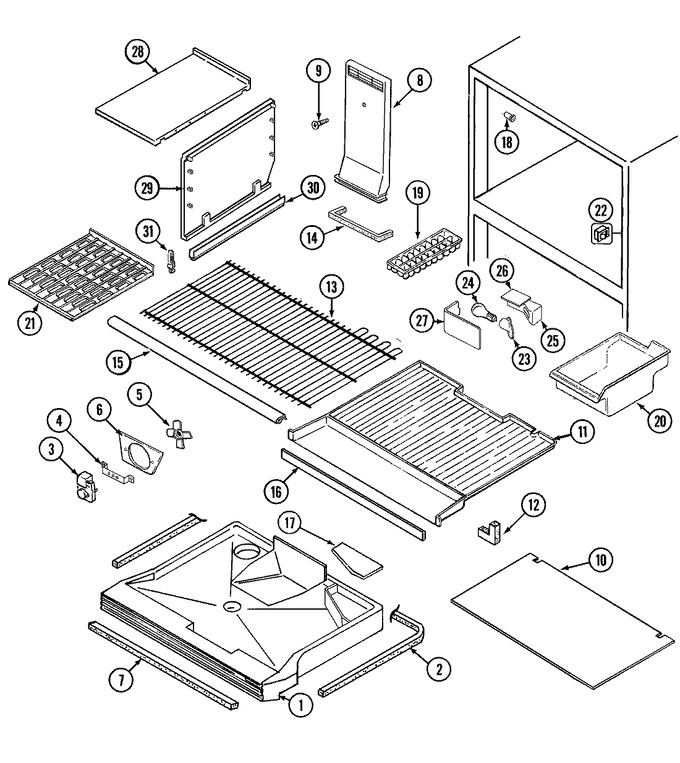

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61001804 | Tray, Styrofoam Mullion | 10 |
|
- | ||||
| 1 | 68946-7 | Seal | 10 |
|
- | ||||
| 2 | 69414-4 | Seal, Mullion Tray | 10 |
|
- | ||||
| 3 | 406062-1 | Screw | 10 |
|
- | ||||
| 3 | 69106-3 | Motor, Evaporator Fan | 10 |
|
- | ||||
| 4 | 64856-1 | Bracket, Fan Motor | 10 |
|
- | ||||
| 4 | W11233072 | Screw (Replaces: 400015-36) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 69107-1 | Blade, Evaporator Fan | 10 |
|
- | ||||
| 6 | 60608-2 | Orifice, Fan Blade | 10 |
|
- | ||||
| 7 | 61001805 | Seal, Mullion Tray (frt.) | 10 |
|
- | ||||
| 8 | 70208-7 | Tunnel, Air Frz | 10 |
|
- | ||||
| 9 | W11233072 | Screw (Replaces: 400015-31) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 66403-11 | Cover, Evaporator | 10 |
|
- | ||||
| 11 | 12001055 | Kit, Anti Sweat | 10 |
|
- | ||||
| 11 | 69400-2 | Bottom, Frz. | 10 |
|
- | ||||
| 12 | 69563-1 | Seal, Frost Chest Bottom | 10 |
|
- | ||||
| 13 | 67696-6 | Shelf | 10 |
|
- | ||||
| 14 | 66325-37 | Seal, Air Tunnel | 10 |
|
- | ||||
| 15 | 70135-22 | Trim, Shelf | 10 |
|
- | ||||
| 16 | 69413-3 | Magnet | 10 |
|
- | ||||
| 17 | 61664806 | Cover, Plenum | 10 |
|
- | ||||
| 18 | 60313-1 | Cup, Shelf | 10 |
|
- | ||||
| 18 | 67466-1 | Cup, Shelf | 10 |
|
- | ||||
| 19 | WP841180A | Tray, Ice (Replaces: 59281-2) | 10 |
|
Immediately | $ 41.00 | |||
| 20 | 69919-2 | Pan, Ice | 10 |
|
- | ||||
| 21 | 67114-5 | Shelf, Ice Tray | 10 |
|
- | ||||
| 22 | W11384469 | Switch, Light (Replaces: 66987-1) | 10 |
|
Immediately | $ 33.51 | |||
| 23 | 68974-3 | Receptacle, Bulb | 10 |
|
- | ||||
| 24 | WP67002552 | Bulb, Light (40w-230v) (Replaces: 24082-1) | 10 |
|
Immediately | $ 10.58 | |||
| 25 | 67006425 | Screw (Replaces: 400017-35) | 10 |
|
Immediately | $ 6.26 | |||
| 25 | 67241-2 | Base, Light | 10 |
|
- | ||||
| 26 | 67361-1 | Deflector, Light | 10 |
|
- | ||||
| 27 | 67240-1 | Shield, Light | 10 |
|
- | ||||
| 28 | 67142-4 | Shelf, Frz. (plastic) | 10 |
|
- | ||||
| 29 | 67419-2 | Divider, Shelf | 10 |
|
- | ||||
| 30 | 67648-1 | Support, Divider | 10 |
|
- | ||||
| 31 | 67657-3 | Guide, Divider | 10 |
|
- | ||||
| 31 | 406008-1 | Screw | 10 |
|
- |
