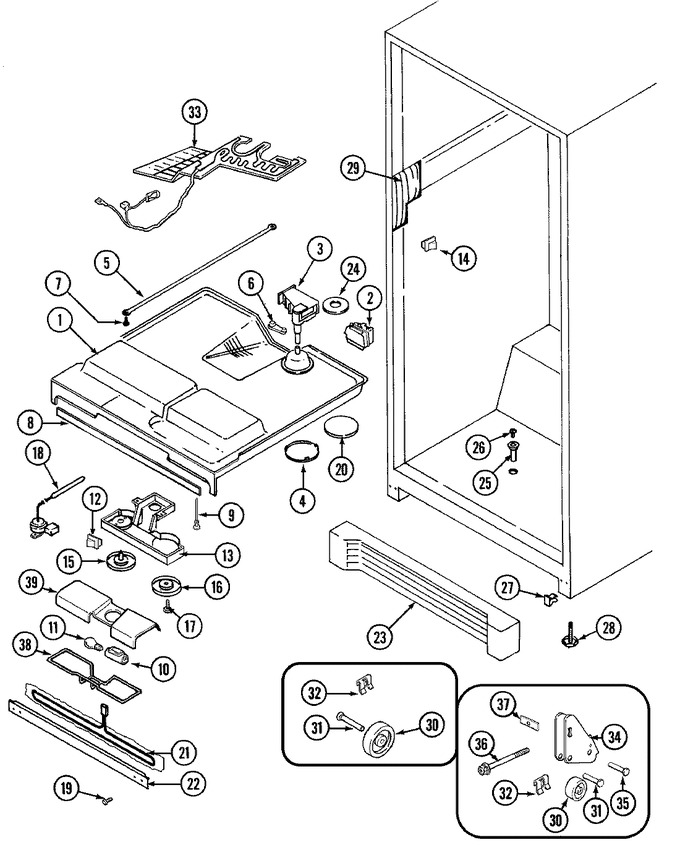

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 69412-1 | Top, F.f. Compartment | 10 |
|
- | ||||
| 1 | 70065-1 | Insulation, F.f. Top Hump | 10 |
|
- | ||||
| 2 | 69623-1 | Deflector, Air | 10 |
|
- | ||||
| 3 | 69811-6 | Orifice Assy., Damper | 10 |
|
- | ||||
| 4 | 67493-1 | Cover, Crank | 10 |
|
- | ||||
| 5 | 69418-4 | Rod, Frz. Control | 10 |
|
- | ||||
| 6 | 67636-2 | Crank, Frz. Control | 10 |
|
- | ||||
| 7 | 420005-1 | Washer, Control Rod | 10 |
|
- | ||||
| 7 | WP59002061 | Screw, 5-20 (Replaces: 61001588) | 10 |
|
$ 6.98 | ||||
| 8 | 69413-3 | Magnet | 10 |
|
- | ||||
| 9 | 65275-78 | Screw | 10 |
|
- | ||||
| 10 | 61001772 | Socket, Light | 10 |
|
- | ||||
| 11 | WP67002552 | Bulb, Light (40w-230v) (Replaces: 24082-1) | 10 |
|
Immediately | $ 10.58 | |||
| 12 | 67363-2 | Switch, Heater | 10 |
|
- | ||||
| 13 | 61001087 | Cover, Control | 10 |
|
- | ||||
| 13 | 405016-35 | Screw | 10 |
|
- | ||||
| 14 | W11384469 | Switch, Light (Replaces: 66987-1) | 10 |
|
Immediately | $ 33.51 | |||
| 15 | 61001823 | Knob, Temp. Control----na | 10 |
|
- | ||||
| 16 | WP61006073 | Knob, Freezer Control (Replaces: 69417-4) | 10 |
|
$ 30.53 | ||||
| 17 | 65275-83 | Screw, Freezer Knob | 10 |
|
- | ||||
| 18 | 61001802 | Control, Temperature | 10 |
|
- | ||||
| 18 | 406013-1 | Screw | 10 |
|
- | ||||
| 19 | 61001608 | Screw | 10 |
|
- | ||||
| 20 | 69037-1 | Disc, Crank Cover | 10 |
|
- | ||||
| 21 | 69617-6 | Heater, Divider Channel | 10 |
|
- | ||||
| 22 | 69420-3-WW | Channel, Mullion Divider (wht) | 10 |
|
- | ||||
| 22 | 61001824 | Wire Harness, Mullion | 10 |
|
- | ||||
| 23 | 70287-9 | Kickplate W/clips (wht) | 10 |
|
- | ||||
| 24 | 68989-1 | Seal, Top Tower | 10 |
|
- | ||||
| 25 | 54531-7 | Tube, Drain | 10 |
|
- | ||||
| 26 | 65039-1 | Cap, Drain Tube | 10 |
|
- | ||||
| 27 | 70285-1 | Clip, Kickplate | 10 |
|
- | ||||
| 28 | 69810-1 | Cap, Leveling Leg | 10 |
|
- | ||||
| 28 | W11117769 | Leg, Leveling (Replaces: 68664-2) | 10 |
|
Immediately | $ 16.61 | |||
| 29 | 69416-2 | Seal, Food Liner (rt) | 10 |
|
- | ||||
| 29 | 69416-1 | Seal, Food Liner (lt) | 10 |
|
- | ||||
| 30 | 69812-1 | Wheel | 10 |
|
- | ||||
| 31 | 29835-2 | Pin, Wheel | 10 |
|
- | ||||
| 32 | 60216-1 | Clip | 10 |
|
- | ||||
| 33 | 70063-1 | Heater, F. F. Top | 10 |
|
- | ||||
| 34 | 67530-1 | Bracket, Wheel | 10 |
|
- | ||||
| 35 | 64965-1 | Pin, Wheel | 10 |
|
- | ||||
| 36 | 71003131 | Screw (Replaces: 65275-64) | 10 |
|
Immediately | $ 6.07 | |||
| 36 | 24580-4 | Tip, Adjustment Screw | 10 |
|
- | ||||
| 37 | 59101-1 | Tapping Plate, Wheel | 10 |
|
- | ||||
| 38 | 70149-1 | Bumper, Light Guard | 10 |
|
- | ||||
| 38 | 69426-2 | Guard, Light | 10 |
|
- | ||||
| 39 | 69849-1 | Shield, Heat | 10 |
|
- | ||||
| 40 | 72319-2 | Wheel Assy | 10 |
|
- |
