SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Shelves & Accessories


08 - Unit Compartment & System


09 - Wiring Information

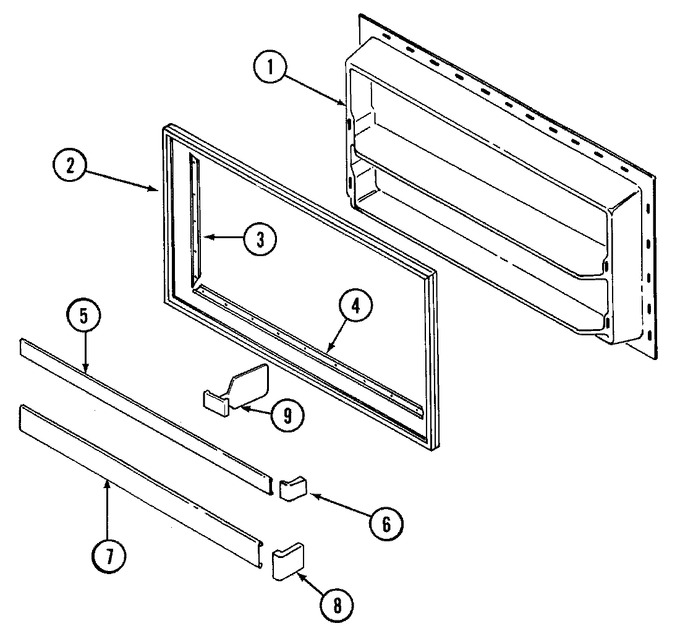

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	69473-1		Liner, Frz. Door	10	Appelez-nous	-
1	65275-5		Screw	10	Appelez-nous	-
2	70025-7		Gasket, Door	10	Appelez-nous	-
3	69999-3		Retainer, Gasket (side)	10	Appelez-nous	-
4	69999-6		Retainer,gasket(top/bot)----na	10	Appelez-nous	-
5	67718-30		Trim, Door Shelf	10	Appelez-nous	-
6	67213-2		Endcap, Shelf Trim (wht)	10			$ 12.64
7	67718-28		Trim, Door Shelf	10	Appelez-nous	-
8	67208-3		Endcap, Shelf Trim	10			$ 13.60
9	67195-8		Organizer, Shelf	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
