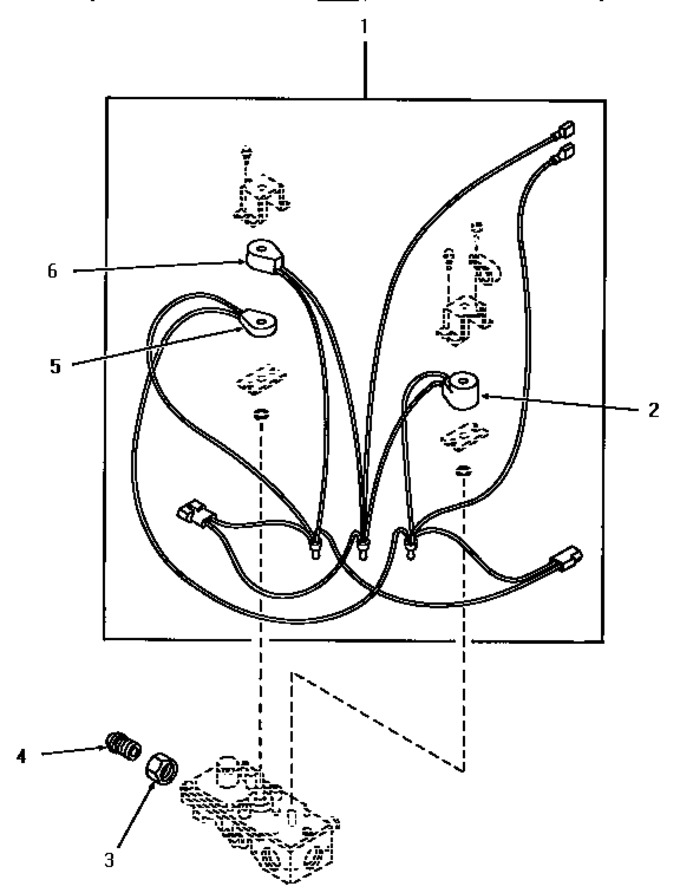

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56225A		Kit,coil				$ 289.16
2	56225D		Coil,secondary				$ 55.15
3	56281		Nut,union		Appelez-nous	-
4	56282		Nipple		Appelez-nous	-
5	56225C		Coil,booster				$ 52.67
6	56225B		Coil,holding				$ 73.32
NI	56225		Gas Valve Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
