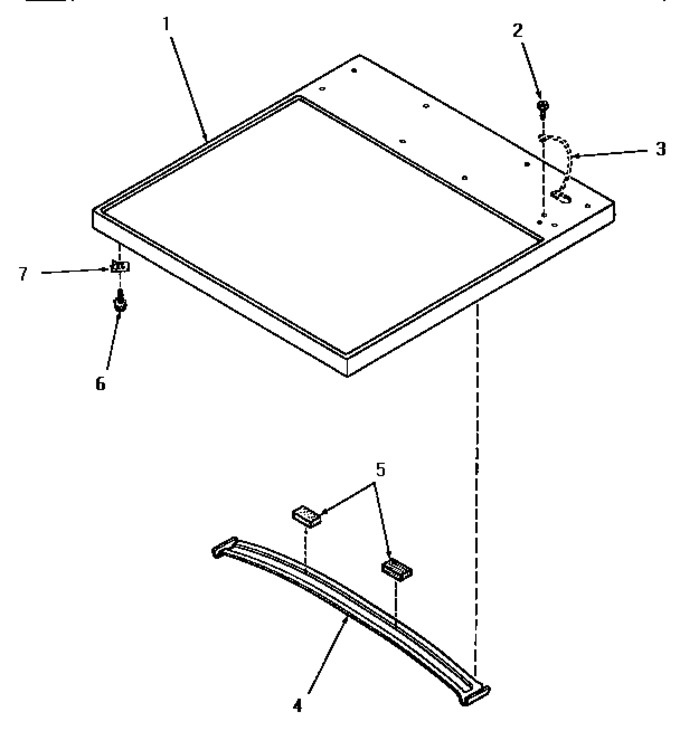

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56099W		Cabinet Top, White		Appelez-nous	-
1	56099L		Cabinet Top, Almond		Appelez-nous	-
1	56099K		Cabinet Top, Coffee		Appelez-nous	-
1	56099H		Cabinet Top, Harvest Gold		Appelez-nous	-
1	56099A		Cabinet Top, Avocado		Appelez-nous	-
2	51924		Screw,10-24 X 1/2 Hex		Appelez-nous	-
3	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
4	56486		Brace, Top		Appelez-nous	-
5	56968		Pad,felt-adhesive Back		Appelez-nous	-
6	23008		Screw,10-24 X 3/4 Sems				$ 6.95
7	20249		Nut,speed 10-24		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
