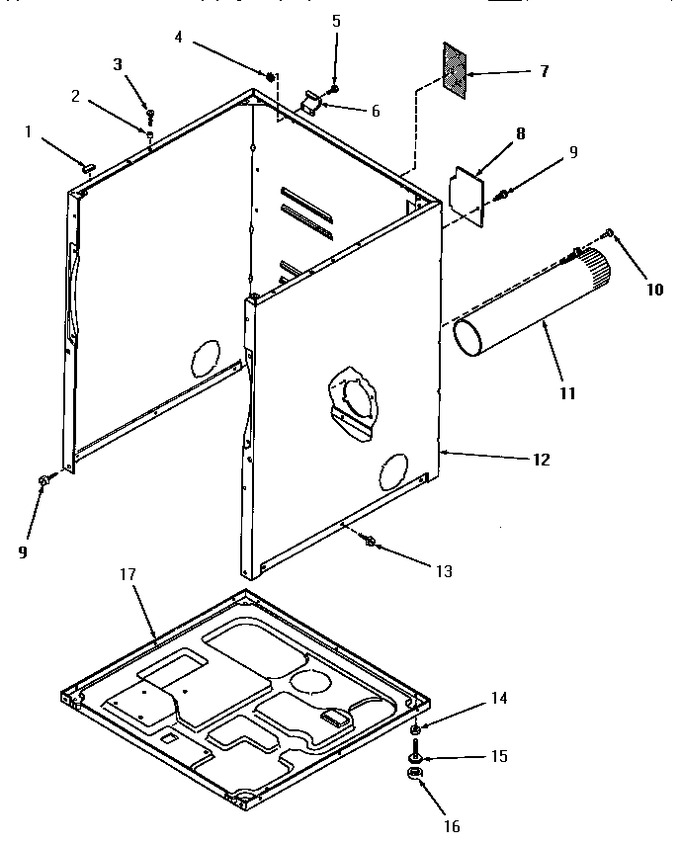

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56128		Pad, Bumper   (Replaces: Y56128)				$ 6.95
2	56079		Locater, Panel			Immediately	$ 6.95
3	WPY014874		Screw, Tapping   (Replaces: 56086)				$ 6.98
4	M0282009		Locknut   (Replaces: 23951)				$ 12.06
5	Y90576		Hex Head Screw		Appelez-nous	-
6	56043		Hinge, Top		Appelez-nous	-
7	56427		Sticker		Appelez-nous	-
8	56044		Access Plate		Appelez-nous	-
9	WP27001200		Hex Head Scrw   (Replaces: 25723)				$ 6.91
10	25724		Hex Head Screw		Appelez-nous	-
11	56118		Assy, Exhaust Duct		Appelez-nous	-
12	57070H		Assy,dryer Cabinet		Appelez-nous	-
12	57070W		Cabinet, White		Appelez-nous	-
12	57070L		Cabinet, Almond		Appelez-nous	-
12	57070K		Cabinet, Coffee		Appelez-nous	-
12	57070A		Cabinet, Avocado		Appelez-nous	-
13	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
14	WP62739		Nut,hex 3/8-16   (Replaces: 20274)				$ 6.85
15	WP233550		Foot,adjustable   (Replaces: Y52696)				$ 7.16
16	70282		Foot,rubber		Appelez-nous	-
17	56074		Base		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
