SELECT A DIAGRAM

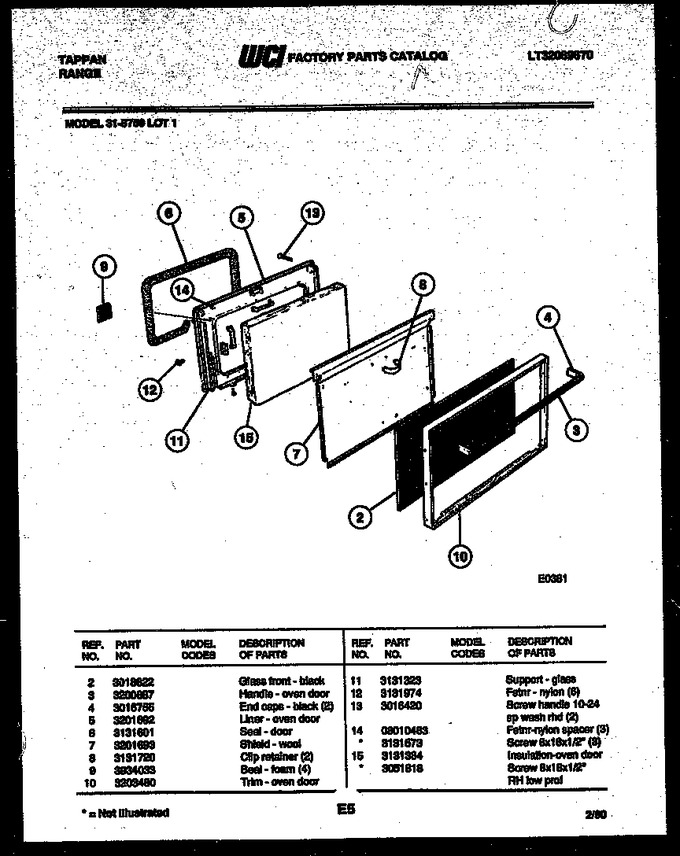

02 - Door Parts


03 - Cooktop Parts


04 - Broiler Parts


05 - Drawer Parts


06 - Body Parts


07 - Backguard


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3018822		Glass Front - Black		Appelez-nous	-
3	320087		Handle - Oven Door		Appelez-nous	-
4	3016755		End Caps, Black (2)		Appelez-nous	-
5	3201692		Liner, Oven Door		Appelez-nous	-
6	3131601		Seal, Door		Appelez-nous	-
7	3201693		Shield, Wool		Appelez-nous	-
8	3131720		Clip, Retainer (2)		Appelez-nous	-
9	3934033		Seal, Foam (4)		Appelez-nous	-
10	3203480		Trim, Oven Door		Appelez-nous	-
11	3131323		Support, Glass		Appelez-nous	-
12	3131974		Fstnr - Nylon (6)		Appelez-nous	-
13	3016420		Screw, Handle, 10-24 Sp. Wash Rhd (2)		Appelez-nous	-
14	08010463		Fastener-clip		Appelez-nous	-
15	3131384		Insulation, Oven Door		Appelez-nous	-
*32677	3051818		Screw 8 X 18 X 1/2`` Rh Low Prof		Appelez-nous	-
14A	3131573		Screw, 8 X 18 X 1/2`` (3) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
