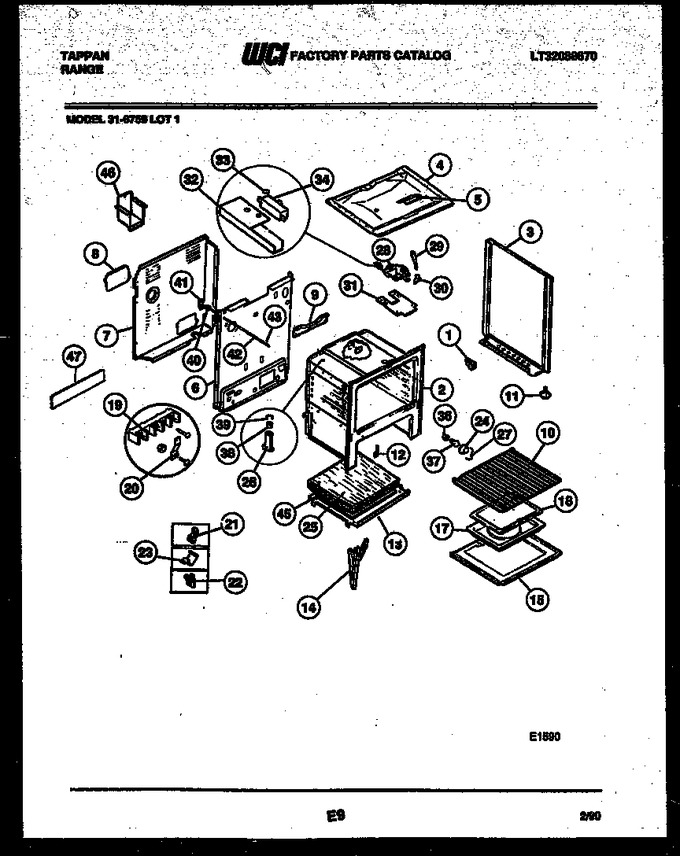

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer-bodyside, (8)				$ 3.62
3	3200792		Pnl-b/s (white) Lh		Appelez-nous	-
4	3051109		Burner Box		Appelez-nous	-
5	3131101		Cover, Plate		Appelez-nous	-
6	3203082		Back-main		Appelez-nous	-
7	3203549		Shield - Lwr Access		Appelez-nous	-
8	3203405		Cover, Lwr. Access		Appelez-nous	-
9	3051368		Cover-flue		Appelez-nous	-
10	3131973		Rack-oven		Appelez-nous	-
11	3203397		Screw, Level (4)		Appelez-nous	-
12	3131570		Cover-hng Cutout				$ 7.35
13	3200825		Shield-wool Lwr		Appelez-nous	-
14	3131569		Channel Dr Hng (2)		Appelez-nous	-
15	3203540		Bottom Oven		Appelez-nous	-
17	3013568		Broiler Pan		Appelez-nous	-
18	3131356		Insert, Broiler Pan		Appelez-nous	-
19	3161116		Terminal Block		Appelez-nous	-
20	08011708		Ground Strap		Appelez-nous	-
21	3011805		Clip, Thermal Bulb		Appelez-nous	-
22	3051162		Glide-drawer (2)			Immediately	$ 8.22
23	3051367		Clip-wire		Appelez-nous	-
24	08011088		Glass-oven Lite Lens		Appelez-nous	-
25	3200847		Insulation, Lower		Appelez-nous	-
26	3051344		Tube-oven Vent		Appelez-nous	-
27	3131104		Wire-glass Rtnr (2)		Appelez-nous	-
28	3015361		Latch Door		Appelez-nous	-
29	3131357		Handle, Latch		Appelez-nous	-
30	358T158P02		Knob, Latch		Appelez-nous	-
31	3051413		Shield-latch		Appelez-nous	-
32	3131593		Shield, Bi Metal Latch		Appelez-nous	-
33	3051733		Fstnr-push On (3)		Appelez-nous	-
34	3131672		Switch, Latching		Appelez-nous	-
36	3014073		Socket-oven Light		Appelez-nous	-
37	3013071		Light Bulb - Oven		Appelez-nous	-
38	08067810		Filter-catalyst		Appelez-nous	-
39	08010606		Retainer-catalyst		Appelez-nous	-
40	3202622		Switch-door		Appelez-nous	-
41	3131289		Bracket - Light Sw		Appelez-nous	-
42	3051495		Rod, Light		Appelez-nous	-
43	3051251		Cover, Rod		Appelez-nous	-
45	3200848		Shield,heat ,lower		Appelez-nous	-
46	3203582		Shield-rear Wall		Appelez-nous	-
47	3131252		Shield-rear Wall		Appelez-nous	-
27A	3131304		Insulation-top (non-illustrated)		Appelez-nous	-
27B	3204582		Insulation-back (non-illustrated)		Appelez-nous	-
27C	3131903		Bumper				$ 55.36
30A	08013188		Screw, Set, 10-24 X 3/16, Latch Knob		Appelez-nous	-
3A	3200789		Pnl-b/s (white) Rh		Appelez-nous	-
45A	3200833		Insulation-wrap (non-illustrated)		Appelez-nous	-
45B	3200834		Shield-heat B/s (2) (non-illustrated)		Appelez-nous	-
45C	3200846		Fstnr - Edge Mtg (2) (non-illustrated)		Appelez-nous	-
46A	3934056		Anti-tip Kit (non-illustrated)		Appelez-nous	-
46B	3204526		Bracket - Cable Mtg (non-illustrated)		Appelez-nous	-
46C	3203550		Plug-button (non-illustrated)			Immediately	$ 15.22
