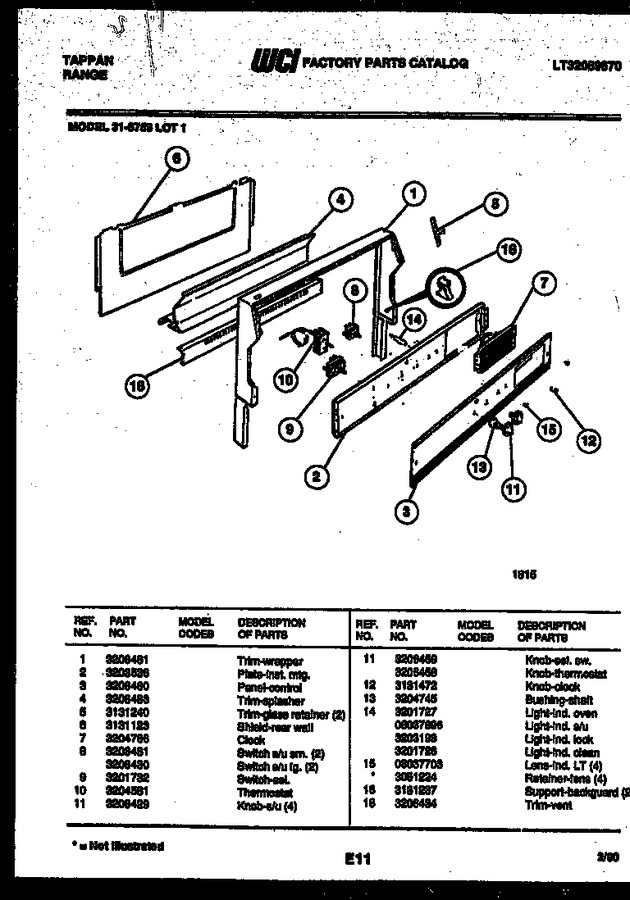

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206461		Trim-wrapper		Appelez-nous	-
2	3203536		Plate - Inst. Mtg		Appelez-nous	-
3	3206460		Panel-control		Appelez-nous	-
4	3206433		Trim-splasher		Appelez-nous	-
5	3131240		Trim-glass Retainer, (2)		Appelez-nous	-
6	3131123		Shield, Rear Wall		Appelez-nous	-
7	3204766		Clock		Appelez-nous	-
8	3206431		Switch S/u Sm. (2)		Appelez-nous	-
9	3201732		Switch-sel.		Appelez-nous	-
10	3204581		Thermostat		Appelez-nous	-
11	3206429		Knob-s/u (4)		Appelez-nous	-
11	3206459		Knob-sel. Sw.		Appelez-nous	-
12	3131472		Knob-clock		Appelez-nous	-
13	3204745		Bushing-shaft		Appelez-nous	-
14	3201727		Light-ind. Oven		Appelez-nous	-
15	08037703		Lens		Appelez-nous	-
16	3131237		Support-backguard (2)		Appelez-nous	-
18	3206434		Trim-vent		Appelez-nous	-
11A	3206458		Knob-thermostat		Appelez-nous	-
14A	08037896		Light-ind. S/u		Appelez-nous	-
14B	3203198		Light-ind. Lock		Appelez-nous	-
14C	3201726		Light-ind. Clean		Appelez-nous	-
15A	3051224		Retainer, Lens (4) (non-illustrated)		Appelez-nous	-
8A	3206430		Switch - S/u Lg. (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
