SELECT A DIAGRAM

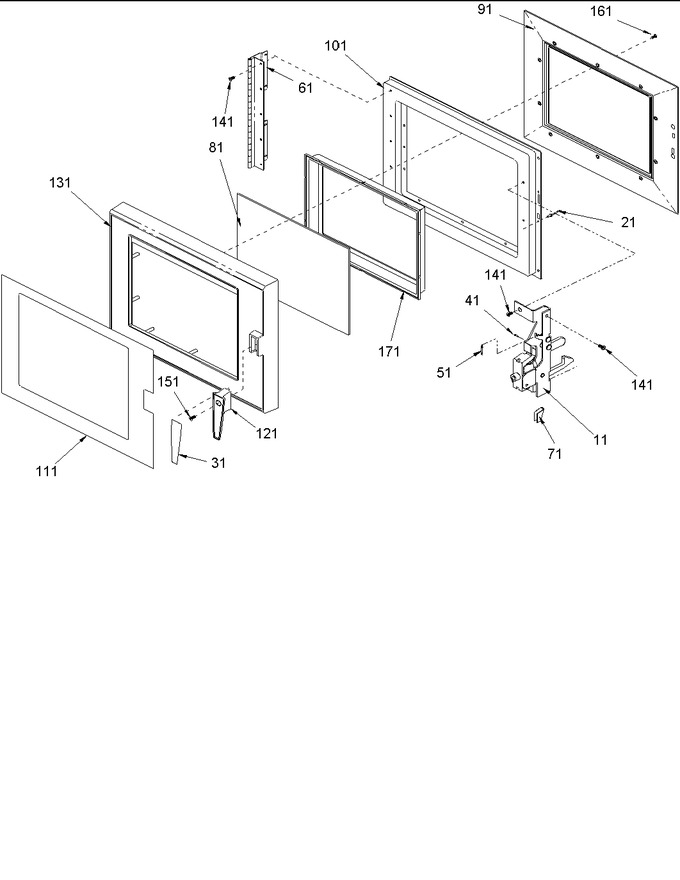

01 - Door Assembly
02 - Internal Components
03 - Outer Cabinet
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | R0150122 | Latch Assy |
|
- | |||||
| 21 | A4539601 | Pop Rivet |
|
- | |||||
| 31 | B8378901 | Ins Hdl |
|
- | |||||
| 41 | B8379201 | Pin, Latch |
|
- | |||||
| 51 | C8893502 | Spring, Door Latch |
|
- | |||||
| 61 | C8961811 | Hinge-door |
|
- | |||||
| 71 | C8991301 | Pad-latch Assy |
|
- | |||||
| 81 | C8960401 | Window, Outer |
|
- | |||||
| 91 | D7683505 | Door, Inner V |
|
- | |||||
| 101 | D7683719 | Weldment-inner Door (blk) |
|
- | |||||
| 111 | D7738601 | Insert Dr |
|
- | |||||
| 121 | D7741501 | Handle Front |
|
- | |||||
| 131 | D7730001 | Door,outer |
|
- | |||||
| 141 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 151 | W11227370 | Screw (Replaces: M0234030) |
|
Immediately | $ 12.78 | ||||
| 161 | 489392 | Screw-``y``drive Headxxx (Replaces: M0237618) |
|
$ 12.02 | |||||
| 171 | D7731103 | Retainer, Lens |
|
- |
