SELECT A DIAGRAM
01 - Door Assembly
02 - Internal Components
03 - Outer Cabinet
New Model Search:

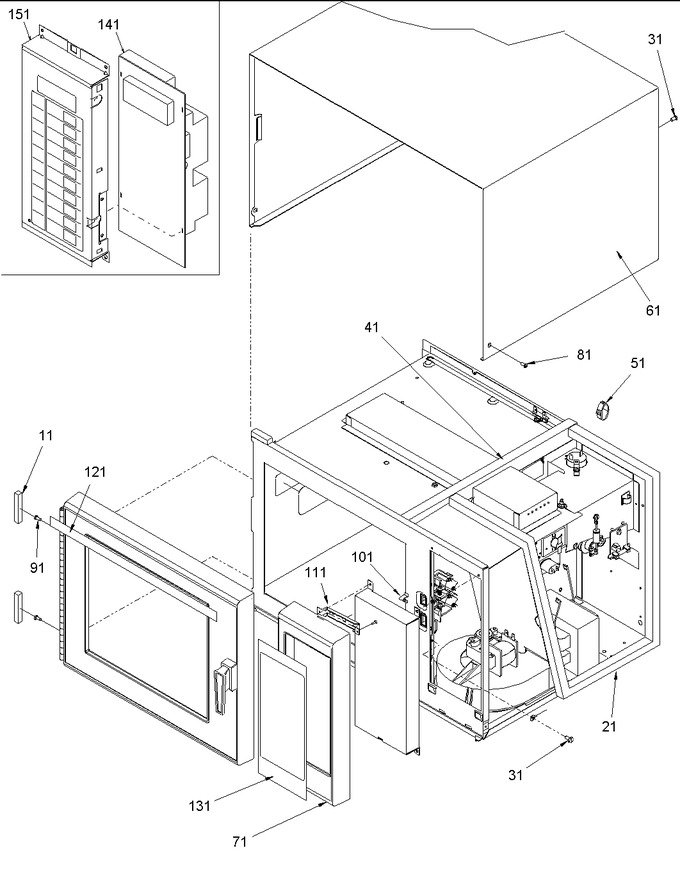

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | A3263904 | Gasket |
|
- | |||||
| 21 | A3263907 | Gasket - Each |
|
- | |||||
| 31 | M0231717 | Screw, Tf |
|
- | |||||
| 41 | B8369901 | Gasket, Oven Top |
|
- | |||||
| 51 | M0118705 | Clip, Guide |
|
- | |||||
| 61 | D7684903 | Wrapper |
|
- | |||||
| 71 | D7730101 | Escutcheon Control |
|
- | |||||
| 81 | M0249619 | Screw, T F |
|
- | |||||
| 91 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 7.04 | ||||
| 101 | B8379401 | Clip |
|
- | |||||
| 111 | C8960301 | Bracket |
|
- | |||||
| 121 | C8962434 | Thinplate, Door |
|
- | |||||
| 131 | C8960701 | Insert Esc Brushed Chrome |
|
- | |||||
| 141 | 10966305 | Board-pc |
|
- | |||||
| 151 | R0000501 | Assy,touch Panel |
|
- |
