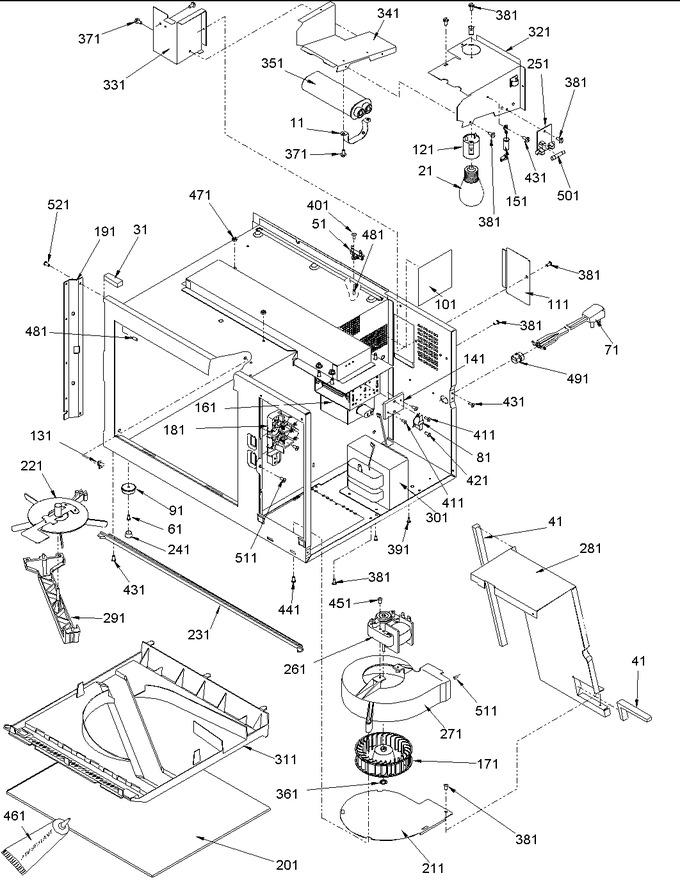

01 - Door Assembly
02 - Internal Components
03 - Outer Cabinet
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | A4055406 | Strap, Capacitor |
|
- | |||||
| 21 | 8009 | Lamp 41w (Replaces: 10664502) |
|
Immediately | $ 16.80 | ||||
| 31 | A3030301 | Gasket (inch) |
|
- | |||||
| 41 | A3030302 | Gasket |
|
- | |||||
| 51 | B5795305 | Fuse, Thermal |
|
- | |||||
| 61 | A4539625 | Pop Rivet |
|
- | |||||
| 71 | 1731300208 | Cord, Power |
|
- | |||||
| 81 | B5684106 | Thermal Protector |
|
- | |||||
| 91 | B5732506 | Foot O.c. Wrapper |
|
- | |||||
| 101 | B8367701 | Window, Oven Light |
|
- | |||||
| 111 | B8370701 | Cover, Light |
|
- | |||||
| 121 | B8371401 | Receptacle, Lamp |
|
- | |||||
| 131 | B8374901 | Support, Shelf |
|
- | |||||
| 141 | B8380601 | Plate, Thermal Cutout |
|
- | |||||
| 151 | 11QBP0527 | Rectifier (Replaces: B8383101) |
|
$ 18.64 | |||||
| 161 | 10489401 | Magnetron |
|
- | |||||
| 171 | C8793501 | Blower Wheel |
|
- | |||||
| 181 | 12360506 | Switch, Interlock |
|
- | |||||
| 191 | C8935903 | Brkt,hinge Support |
|
- | |||||
| 201 | C8936902 | Tray-glass Floor |
|
- | |||||
| 211 | C8942501 | Brkt Scroll |
|
- | |||||
| 221 | C8943002Q | Assy, Antenna |
|
$ 10.85 | |||||
| 231 | C8943602 | Trim |
|
- | |||||
| 241 | C8965402 | Plug,foot |
|
- | |||||
| 251 | 12136503 | Block-1 Pole Fuse |
|
$ 5.70 | |||||
| 261 | D7670306 | Motor, Blower |
|
- | |||||
| 271 | D7684601 | Scroll, Blower |
|
- | |||||
| 281 | D7685413 | Blower Partition,black E Ct |
|
- | |||||
| 291 | D7685505 | Cradle, Antenna |
|
- | |||||
| 301 | 10426611 | Transformer |
|
- | |||||
| 311 | D7692501 | Grease Shield |
|
- | |||||
| 321 | D7772007 | Duct, Top Air |
|
- | |||||
| 331 | D7772101 | Shield, Light |
|
- | |||||
| 341 | D7772202 | Air Duct. Bottom |
|
- | |||||
| 351 | 10366919 | Capacitor |
|
- | |||||
| 361 | WP3195558 | Clip-blwr Ret (Replaces: M0118903) |
|
$ 7.68 | |||||
| 371 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 381 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 391 | WP3390631 | Screw (Replaces: M0216729) |
|
$ 7.04 | |||||
| 401 | WPW10068250 | Screw (Replaces: M0234029) |
|
$ 3.66 | |||||
| 411 | M0229916 | Screw T.c |
|
- | |||||
| 421 | M0232012 | Screw |
|
- | |||||
| 431 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 441 | M0254706 | Screw |
|
- | |||||
| 451 | M0213123 | Screw |
|
- | |||||
| 461 | W10841140 | Sealer (Replaces: M0275598) |
|
Immediately | $ 24.92 | ||||
| 471 | M0288808 | Nut |
|
- | |||||
| 481 | M0308801 | Cap, Protective-threaded (red) |
|
- | |||||
| 491 | M0370003 | Strain Relief |
|
- | |||||
| 501 | ABC20 | Fuse 20 Amp K (Replaces: M0805101) |
|
Immediately | $ 10.31 | ||||
| 511 | M0216517 | Screw |
|
- | |||||
| 521 | M0231717 | Screw, Tf |
|
- | |||||
| NI | 12533401 | Harness,oven |
|
- |
