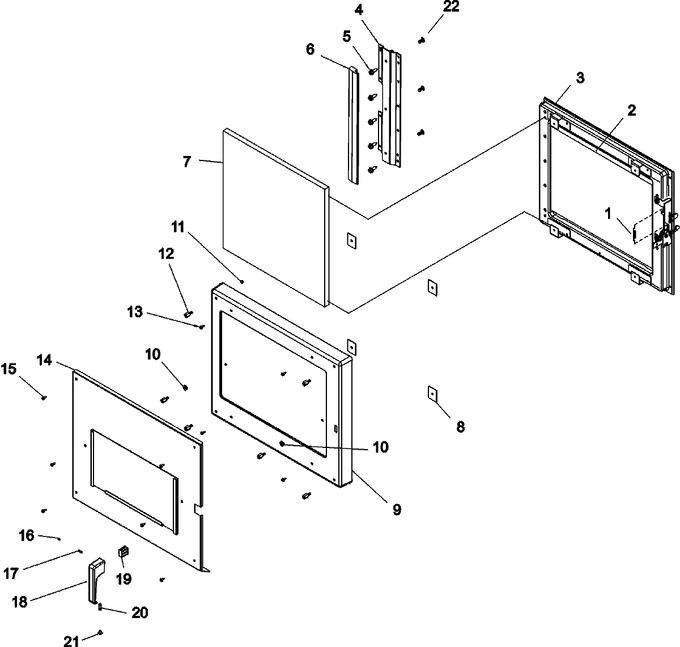

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 59001721 | Spring-door Latch |
|
- | |||||
| 2 | 59001719 | Insul-door (small Sheet) |
|
- | |||||
| 3 | 59001986 | Assy.-inner Door |
|
- | |||||
| 4 | 59001869 | Hinge- Door |
|
- | |||||
| 5 | WP12990527 | Screw (Replaces: M0229716) |
|
Immediately | $ 7.15 | ||||
| 6 | 59001723 | Cover-hinge (magnetic) |
|
- | |||||
| 7 | 59001720 | Insul-door (large Sheet) |
|
- | |||||
| 8 | 59001870 | Spacer- Thermal |
|
- | |||||
| 9 | 59001716 | Door-outer |
|
- | |||||
| 10 | 59001871 | Washer- Flat |
|
- | |||||
| 11 | WP488130 | Nut (Replaces: M0282007) |
|
$ 6.27 | |||||
| 12 | 59001872 | Spacer- Door Shield |
|
- | |||||
| 13 | 5145-E | No.8 Ab X 1/2`` Crow Foot Hd Scr |
|
- | |||||
| 14 | 59001987 | Door Shield Assy |
|
- | |||||
| 15 | 59001718 | Screw-decorative |
|
- | |||||
| 16 | 12360703 | Plug, Button (blk) |
|
- | |||||
| 17 | M0208943 | Set Screw |
|
- | |||||
| 18 | 12490902 | Door Handle |
|
- | |||||
| 19 | 12576901 | Insert,handle |
|
- | |||||
| 20 | M0206943 | Set Screw |
|
- | |||||
| 21 | M0310305 | Plug, Button (wht) |
|
- | |||||
| 22 | M0230815 | Screw |
|
- |
