SELECT A DIAGRAM

01 - Cabinet


02 - Cavity


03 - Door


04 - Ducts


05 - Electrical Components


06 - Fuses, Blower, Heater Box,


07 - Plenum Box, Sensor, Limiter,


08 - Wiring Information

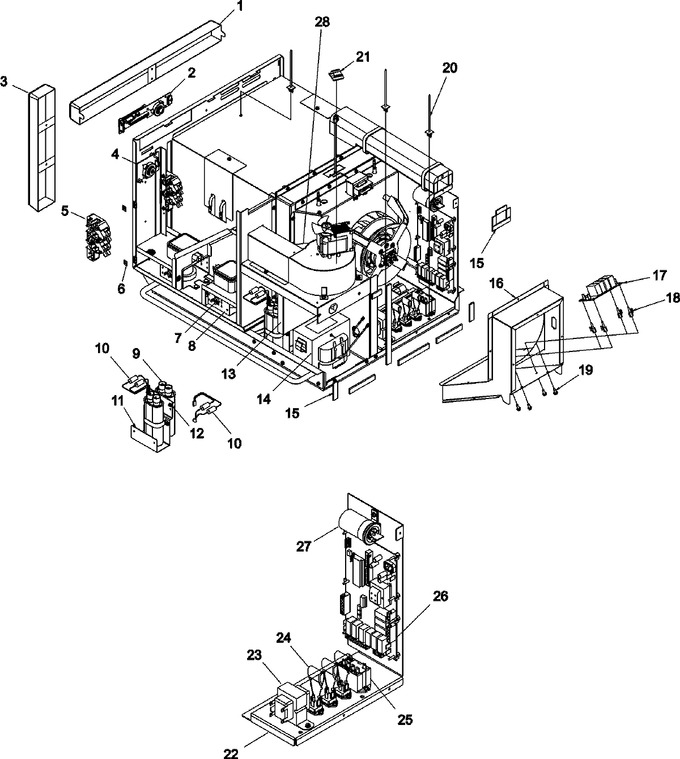

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	59001705		Assy, Touch Panel-top		Appelez-nous	-
1	59001208		Screw, Hex Head		Appelez-nous	-
2	M0234114		Screw		Appelez-nous	-
2	59001895		Display Board		Appelez-nous	-
3	59001208		Screw, Hex Head		Appelez-nous	-
3	59001706		Assy, Touch Panel-side		Appelez-nous	-
4	59001704		Board-speaker		Appelez-nous	-
4	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
4	M0590602		Support P-c Bd A		Appelez-nous	-
5	59001114		Switch, Interlock		Appelez-nous	-
5	59001919		Screw- Tf		Appelez-nous	-
6	59001922		Nut- Speed		Appelez-nous	-
7	M0229916		Screw T.c		Appelez-nous	-
7	B5684124		Cutout-thermal Magnetron		Appelez-nous	-
8	12096202		Magnetron		Appelez-nous	-
9	M0253916		Screw		Appelez-nous	-
9	59001167		Capacitor-.90		Appelez-nous	-
9	A4055405		Strap, Capacitor		Appelez-nous	-
10	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
11	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
11	59001984		Brkt- Capacitor Mtg		Appelez-nous	-
12	M0253916		Screw		Appelez-nous	-
13	59001924		Duct- Blower Baffle		Appelez-nous	-
13	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
14	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
14	59001710		Transformer-hv		Appelez-nous	-
15	A3030301		Gasket (inch)		Appelez-nous	-
16	59001977		Inlet Duct Assy		Appelez-nous	-
17	59001925		Board- Halfwave		Appelez-nous	-
18	M0590602		Support P-c Bd A		Appelez-nous	-
19	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
20	M0322202		Tie Wire		Appelez-nous	-
21	M0104102		Clip, Cord				$ 8.10
22	59001980		Brkt- Control Board Assy		Appelez-nous	-
23	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
23	59001630		Transformer-auto				$ 26.20
24	D7681501		Triac				$ 44.05
24	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
24	10172901Q		Snubber Assembly		Appelez-nous	-
25	59001981		Relay				$ 60.51
25	M0253916		Screw		Appelez-nous	-
26	M0590602		Support P-c Bd A		Appelez-nous	-
26	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
26	59001957		Hv Board- Amana Prog		Appelez-nous	-
27	M0253916		Screw		Appelez-nous	-
27	59001927		Clamp- Capacitor		Appelez-nous	-
27	59001712		Starter Capacitor		Appelez-nous	-
28	59001935		Duct- Blocking		Appelez-nous	-
28	WP489128		Screw   (Replaces: M0220417)				$ 9.79

    View Diagram in Separate Window       Print Part List
