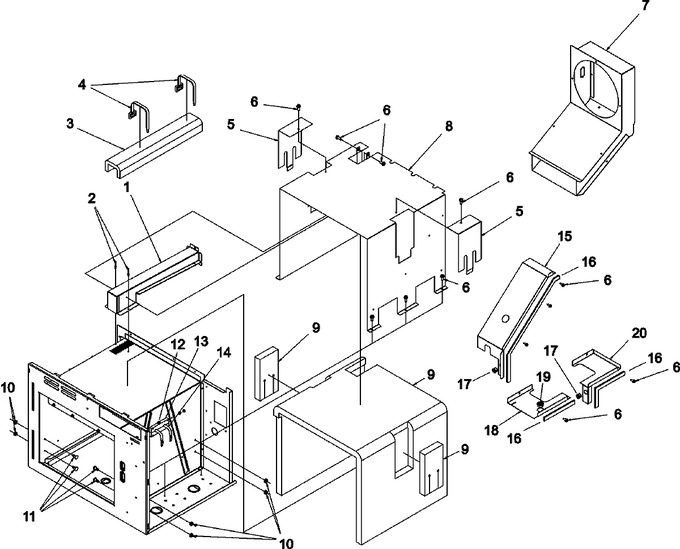

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	59001886		Flue Duct Assy		Appelez-nous	-
2	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
3	59001887		Insulation		Appelez-nous	-
4	M0321207		Wire-tie		Appelez-nous	-
5	59001972		Access Plate		Appelez-nous	-
6	WP489128		Screw   (Replaces: M0220417)				$ 9.79
7	59001977		Inlet Duct Assy		Appelez-nous	-
8	59001973		Retainer- Insulation		Appelez-nous	-
9	59001891		Insulation- Cavity		Appelez-nous	-
10	WP488130		Nut   (Replaces: M0282007)				$ 6.27
11	59001892		Bolt- Shoulder		Appelez-nous	-
12	59001915		Screw- Alan 9/64``		Appelez-nous	-
13	59001896		Block- Element Mtg (top)		Appelez-nous	-
13	59001208		Screw, Hex Head		Appelez-nous	-
14	59001208		Screw, Hex Head		Appelez-nous	-
14	59001897		Block- Element Mtg (bottom)		Appelez-nous	-
15	59001974		Baffle- Mag Air		Appelez-nous	-
16	A3030301		Gasket (inch)		Appelez-nous	-
17	A3293501		Bushing		Appelez-nous	-
18	59001975		Baffle- Front Air		Appelez-nous	-
19	M0571001		Snap Bushing		Appelez-nous	-
20	59001976		Baffle- Rear Air		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
