SELECT A DIAGRAM

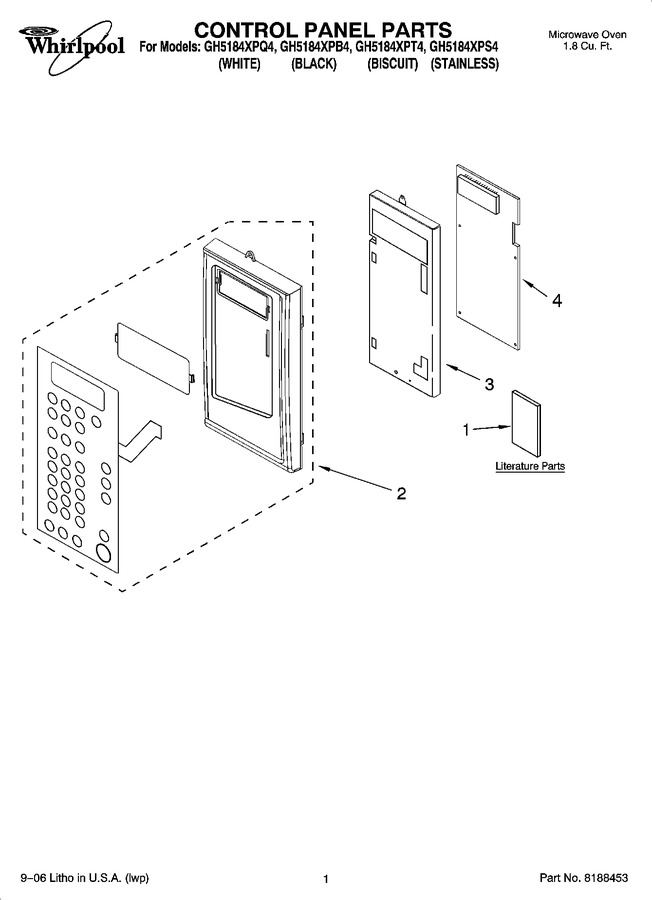

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8205973		U & C Guide		Appelez-nous	-
1	8205609		Tech Sheet		Appelez-nous	-
1	8206579		Instrctn, Instlltn		Appelez-nous	-
1	8204933		Cook Guide Label		Appelez-nous	-
2	8205417		Panel Asy, Control Includes Lens And Membrane Switch (white)		Appelez-nous	-
2	8205419		Panel Asy, Control Includes Lens And Membrane Switch (black)		Appelez-nous	-
2	8205418		Panel Asy, Control Includes Lens And Membrane Switch (biscuit)		Appelez-nous	-
2	8205923		Panel Asy, Control Includes Lens And Membrane Switch (stainless)		Appelez-nous	-
3	W10114256		Bracket, Control		Appelez-nous	-
4	8205421		Microcomputer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
