01 - Control Panel Parts
02 - Door Parts

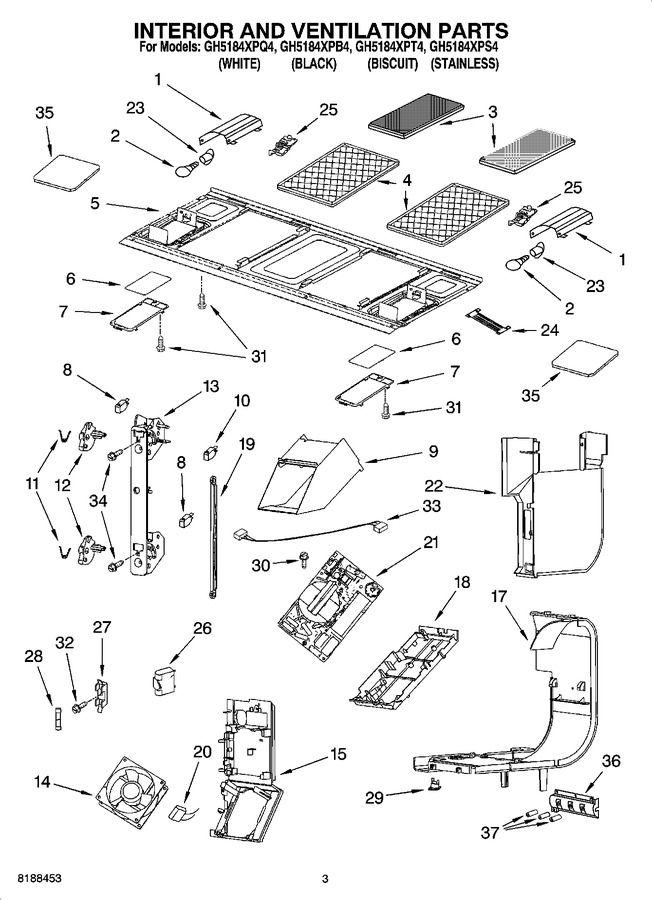

03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8205096 | Reflector, Lamp |
|
- | |||||
| 2 | 8206232A | Lamp (Replaces: 8183993) |
|
Immediately | $ 6.61 | ||||
| 3 | W10112514A | Filter, Charcoal (Replaces: W10112514) |
|
Immediately | $ 26.06 | ||||
| 4 | W10113040A | Filter, Grease (Replaces: W10113040) |
|
Immediately | $ 21.43 | ||||
| 5 | 8205366 | Plate, Bottom |
|
- | |||||
| 6 | 8184141 | Glass, Lamp |
|
$ 34.66 | |||||
| 7 | 8184889 | Holder, Glass |
|
- | |||||
| 8 | W10211974 | Switch, Micro Primary/secondary (Replaces: 8206352) |
|
Immediately | $ 54.40 | ||||
| 9 | W10110596 | Cover, Inverter |
|
- | |||||
| 10 | W10211972 | Switch, Micro (Replaces: 8206345) |
|
Immediately | $ 47.16 | ||||
| 11 | 8169438 | Spring, Interlock |
|
$ 10.69 | |||||
| 12 | 8205211 | Plate, Cam |
|
- | |||||
| 13 | 8185189 | Support, Interlock |
|
$ 36.40 | |||||
| 14 | 8184875 | Fan, Dc 12 Volt |
|
$ 83.80 | |||||
| 15 | 8184894 | Housing, Fan |
|
- | |||||
| 17 | 8206565 | Bracket, Holder |
|
$ 32.90 | |||||
| 18 | 8184670 | Holder, Inverter |
|
- | |||||
| 19 | 8185190 | Rod-locking Link |
|
- | |||||
| 20 | 8184093 | Capacitor, 125 V |
|
- | |||||
| 21 | W10217710 | Inverter 1100 W (Replaces: 8205093) |
|
$ 306.58 | |||||
| 22 | 8185031 | Plate, Side |
|
- | |||||
| 23 | 8184926 | Holder, Lamp |
|
- | |||||
| 24 | 8184887 | Cable |
|
- | |||||
| 25 | 8184202 | Cover, Terminal |
|
- | |||||
| 26 | 8184204 | Capacitor |
|
- | |||||
| 27 | 8184312 | Holder, Fuse |
|
- | |||||
| 28 | W11707984 | Fuse (Replaces: 4393308) |
|
Immediately | $ 41.27 | ||||
| 29 | 8183998 | Thermostat |
|
$ 45.64 | |||||
| 30 | 8184199 | Screw |
|
- | |||||
| 31 | 4393835 | Screw |
|
$ 11.83 | |||||
| 32 | 8184200 | Screw |
|
- | |||||
| 33 | W10615910 | Ribbon Cable (p2 To Cn701 On 1100 W Inverter) (Replaces: 8205014) |
|
$ 211.70 | |||||
| 34 | 8169479 | Screw (Replaces: 8169477) |
|
$ 6.26 | |||||
| 35 | 8184203 | Foil, Lamp |
|
- | |||||
| 36 | W10114257 | Brkt-support Ferrite Holder |
|
- | |||||
| 37 | 8206086 | Ferrite Ring |
|
- |
