SELECT A DIAGRAM

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts

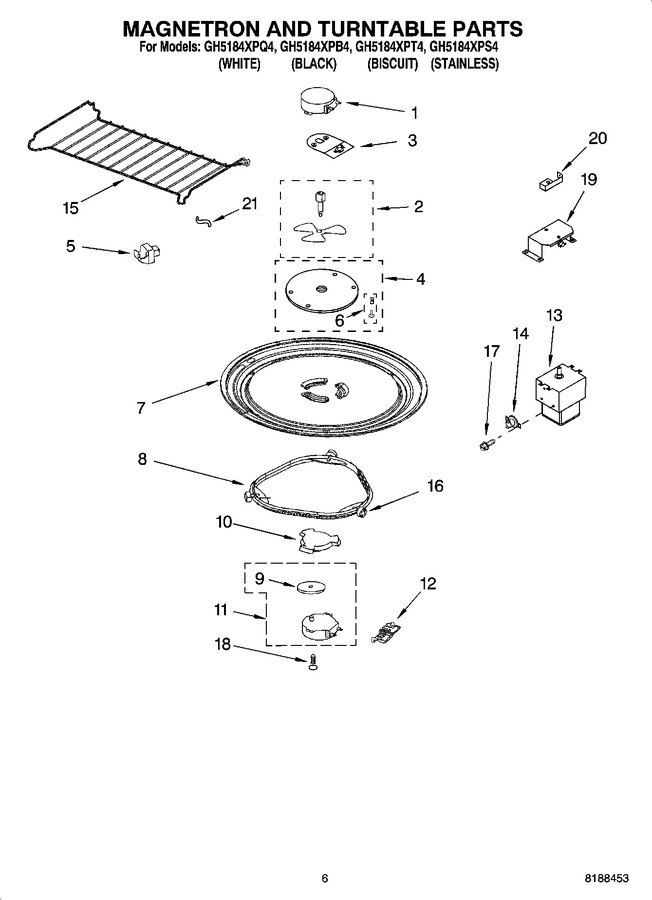

05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8205044		Motor, Stirrer		Appelez-nous	-
2	8205202		Stirrer Shaft/blade		Appelez-nous	-
3	8206454		Thermostat/bracket		Appelez-nous	-
4	8184476		Cover, Inlet Includes Nails And Bushings		Appelez-nous	-
5	W10315274		Hook, Rack (4)   (Replaces: 8206118)				$ 39.68
6	8184549		Nails/bushings (5 Of Each)		Appelez-nous	-
7	8206226		Turntable		Appelez-nous	-
8	W11252182		Ring, Turntable   (Replaces: 8206227)			Immediately	$ 35.60
9	8184109		Spacer, Waterproof				$ 6.26
10	W10435116		Driver, Turntable   (Replaces: 8206228)				$ 29.54
11	W10642989		Motor, Turntable   (Replaces: 8183953)			Immediately	$ 171.39
12	W10110598		Cover, Terminal		Appelez-nous	-
13	8206317		Magnetron				$ 318.62
14	8183994		Thermostat				$ 40.07
15	8205549		Rack		Appelez-nous	-
16	4393861		Wheel (3)				$ 5.59
17	4393838		Screw		Appelez-nous	-
18	4393832		Screw				$ 11.55
19	8205578		Thermostat/bracket		Appelez-nous	-
20	W10110595		Bracket, Plug		Appelez-nous	-
21	W10315274		Spacer (4)   (Replaces: W10107780)				$ 39.68

    View Diagram in Separate Window       Print Part List
