SELECT A DIAGRAM

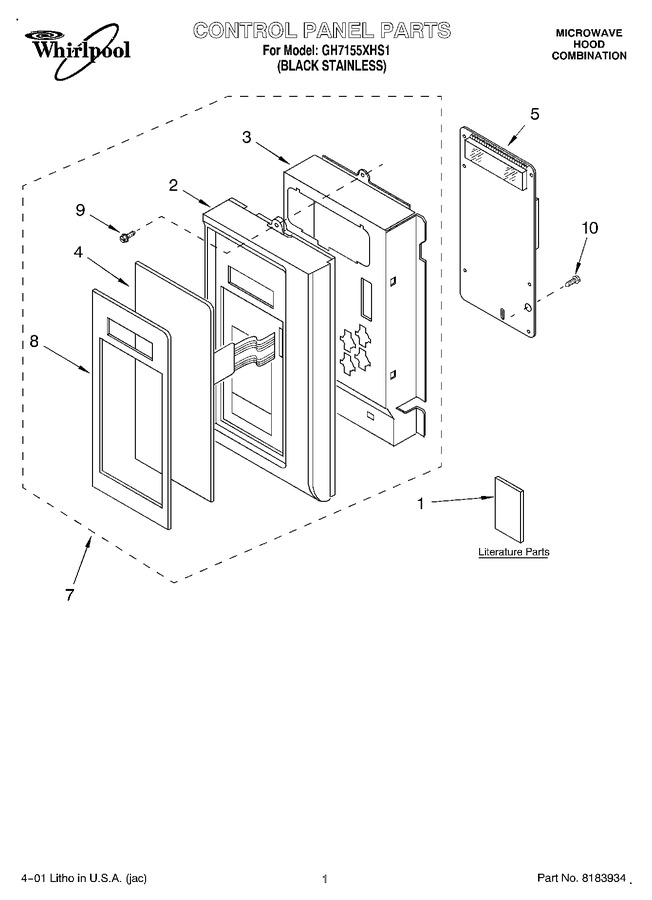

01 - Control Panel, Literature
02 - Door
03 - Cabinet
04 - Magnetron And Air Flow
05 - Interior
06 - Latch Board
07 - Ventilation
08 - Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT4359953 | Literature Parts (guide, U & C) |
|
- | |||||
| 1 | LIT4359970 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT4359968 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT4359969 | Literature Parts (guide, Cooking) |
|
- | |||||
| 2 | 8171853 | Control Panel |
|
- | |||||
| 3 | 8171855 | Bracket, Control |
|
- | |||||
| 4 | 8171856 | Key Membrane |
|
- | |||||
| 5 | 8171857 | Pcb Sub Assy. |
|
- | |||||
| 7 | 8183977 | Controller Sub Asy |
|
- | |||||
| 8 | 8171852 | Cover, Front |
|
- | |||||
| 9 | 4358762 | Screw |
|
$ 7.10 | |||||
| 10 | 4344826 | Screw (Replaces: 4358489) |
|
$ 14.31 |
