01 - Control Panel, Literature

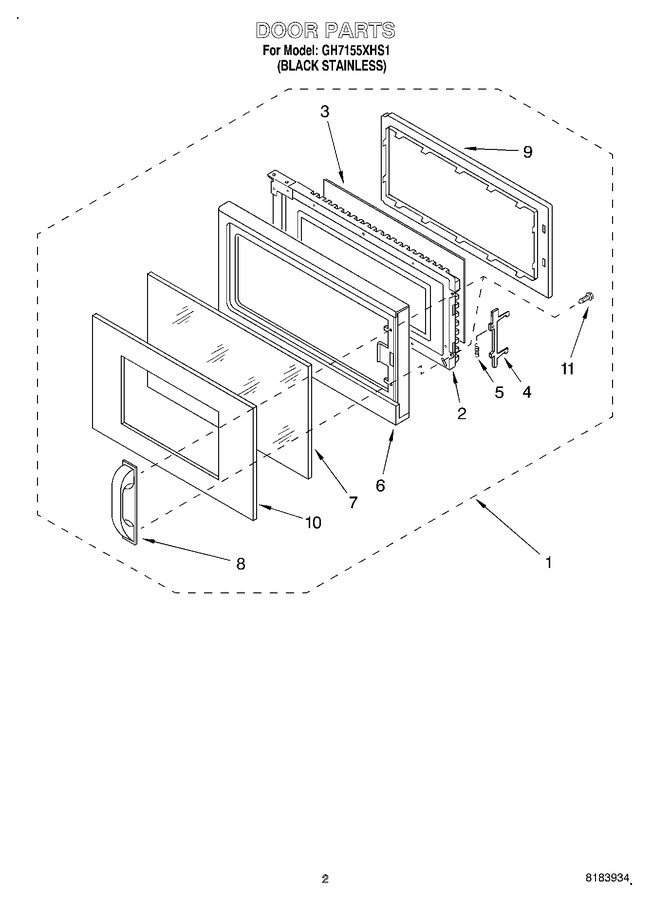

02 - Door
03 - Cabinet
04 - Magnetron And Air Flow
05 - Interior
06 - Latch Board
07 - Ventilation
08 - Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8171847 | Door Assembly |
|
- | |||||
| 2 | 8183976 | Frame, Door |
|
- | |||||
| 3 | WPW10146437 | Tape, Seal (Replaces: 8171844) |
|
$ 79.74 | |||||
| 4 | 8171850 | Latch |
|
- | |||||
| 5 | 8183882 | Spring, Latch |
|
- | |||||
| 6 | 8171849 | Panel, Door |
|
- | |||||
| 7 | 8171851 | Glass, Door |
|
- | |||||
| 8 | 8171848 | Handle, Door |
|
- | |||||
| 9 | 8171846 | Choke, Cover |
|
- | |||||
| 10 | 8171845 | Cover, Front |
|
- | |||||
| 11 | 4358188 | Screw |
|
- |
