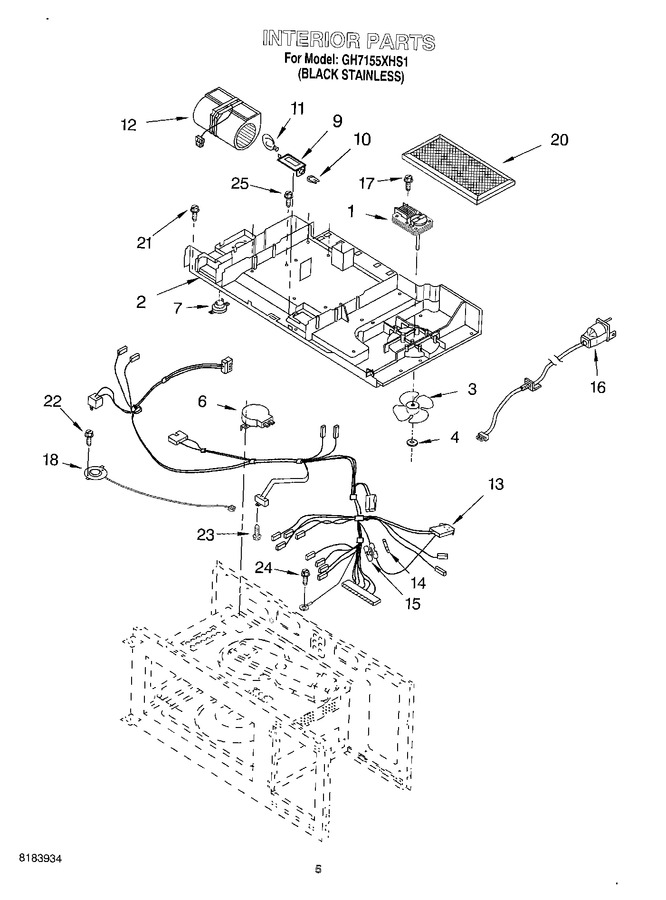

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4359511		Motor, Fan		Appelez-nous	-
2	8171871		Air Duct		Appelez-nous	-
3	4158758		Blower Fan		Appelez-nous	-
4	4358055		Push Nut				$ 4.83
6	4359515		Motor, Synchronous		Appelez-nous	-
7	W10864742		Thermostat   (Replaces: 4358775)				$ 76.01
9	4359964		Cover		Appelez-nous	-
10	4359518		Lamp Holder		Appelez-nous	-
11	8206232A		Oven Lamp   (Replaces: 4158344)			Immediately	$ 6.61
12	8171860		Motor, Ventilation		Appelez-nous	-
13	8183753		Lead, Wire		Appelez-nous	-
14	WP8183507		Fuse   (Replaces: 8183507)				$ 18.33
15	4358659		Fuse Cap		Appelez-nous	-
16	8171875		Power Cord		Appelez-nous	-
17	4359512		Screw		Appelez-nous	-
18	8171878		Sensor Assy.		Appelez-nous	-
20	4359331		Charcoal Filter				$ 15.29
21	4358381		Screw		Appelez-nous	-
22	4358376		Screw		Appelez-nous	-
23	4358883		Screw		Appelez-nous	-
24	4344826		Screw   (Replaces: 4358489)				$ 14.31
25	4358404		Installation Hardware		Appelez-nous	-
25	4344826		Screw   (Replaces: 8171883)				$ 14.31
25	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16

    View Diagram in Separate Window       Print Part List
