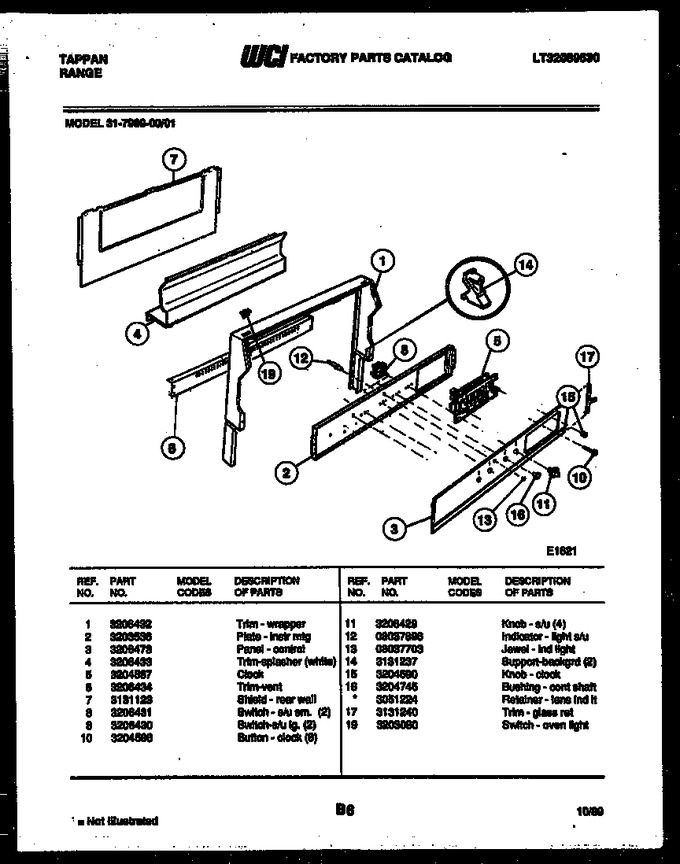

02 - Backguard
03 - Door Parts
04 - Body Parts
05 - Cooktop And Broiler Parts
06 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206432 | Trim-wrapper |
|
- | |||||
| 2 | 3203536 | Plate-instr Mtg |
|
- | |||||
| 3 | 3206473 | Panel - Control |
|
- | |||||
| 4 | 3206433 | Trim-splasher (white) |
|
- | |||||
| 5 | 3204587 | Clock |
|
- | |||||
| 6 | 3206434 | Trim-vent |
|
- | |||||
| 7 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 8 | 3206430 | Switch - S/u Lg. (2) |
|
- | |||||
| 8 | 3206431 | Switch S/u Sm. (2) |
|
- | |||||
| 10 | 3204586 | Button - Clock (8) |
|
- | |||||
| 11 | 3206429 | Knob-s/u (4) |
|
- | |||||
| 12 | 08037896 | Indicator-light S/u |
|
- | |||||
| 13 | 08037703 | Lens |
|
- | |||||
| 14 | 3131237 | Support-backgrd (2) |
|
- | |||||
| 15 | 3204590 | Knob-clock |
|
- | |||||
| 16 | 3204745 | Bushing-cont Shaft |
|
- | |||||
| 17 | 3131240 | Trim-glass Ret |
|
- | |||||
| 19 | 3203080 | Switch - Oven Light |
|
- | |||||
| 16A | 3051224 | Retainer - Lens Ind It (non-illustrated) |
|
- |
