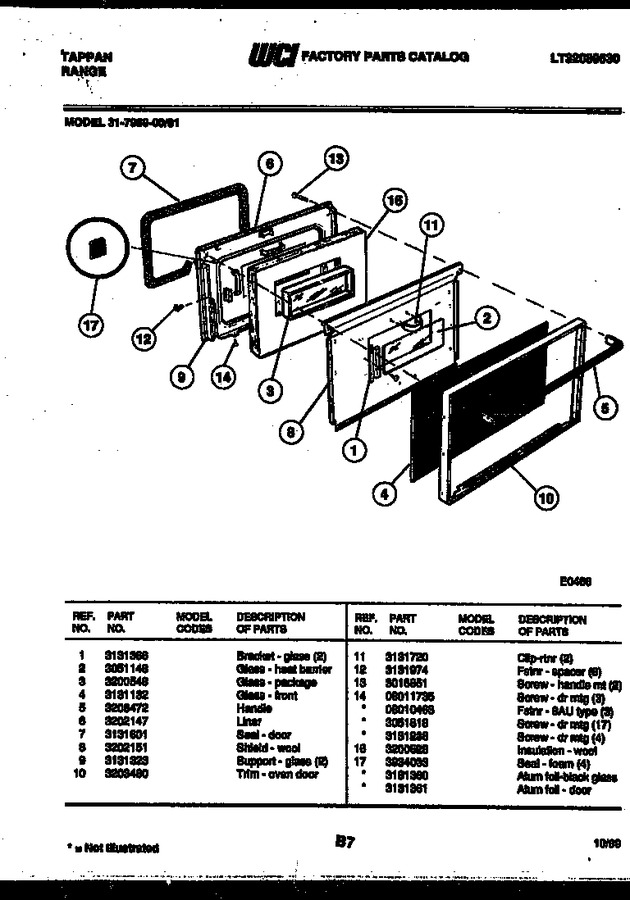

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131366		Bracket, Glass (2)		Appelez-nous	-
2	3051148		Glass, Heat Barrier		Appelez-nous	-
3	3200548		Glass-package		Appelez-nous	-
4	3131132		Glass, Front		Appelez-nous	-
5	3206472		Handle		Appelez-nous	-
6	3202147		Liner		Appelez-nous	-
7	3131601		Seal, Door		Appelez-nous	-
8	3202151		Shield, Wool		Appelez-nous	-
9	3131323		Support, Glass (2)		Appelez-nous	-
10	3203480		Trim, Oven Door		Appelez-nous	-
11	3131720		Clip-rtnr (2)		Appelez-nous	-
12	3131974		Fstnr. Spacer (6)		Appelez-nous	-
13	3016851		Screw - Handle Mt (2)		Appelez-nous	-
14	3131236		Screw-dr Mtg (4) (non-illustrated)		Appelez-nous	-
14	3051818		Screw - Dr Mtg (17) (non-illustrated)		Appelez-nous	-
14	08011735		Screw-dr Mtg (3)		Appelez-nous	-
16	3200528		Insulation-wool		Appelez-nous	-
17	3934033		Seal, Foam (4)		Appelez-nous	-
*33154	3131360		Alum Foil - Black Glass		Appelez-nous	-
*33154	3131361		Alum Foil - Door		Appelez-nous	-
14A	08010463		Fastener-clip		Appelez-nous	-
