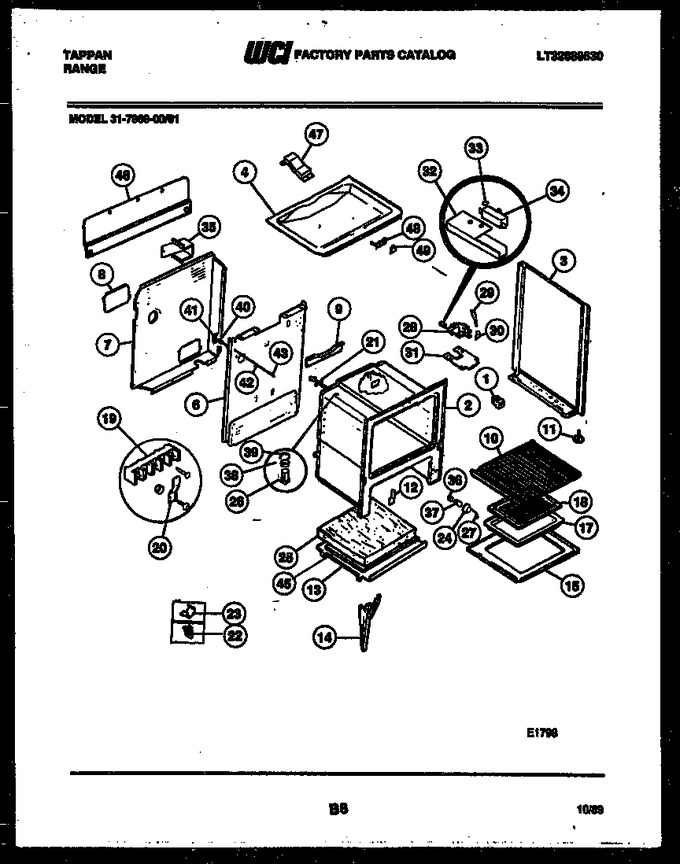

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Door Parts
04 - Body Parts
05 - Cooktop And Broiler Parts
06 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 3 | 3200789 | Pnl B/s Rh (white) |
|
- | |||||
| 3 | 3200792 | Pnl. B/s (lh White) |
|
- | |||||
| 4 | 3051109 | Burner Box |
|
- | |||||
| 6 | 3203082 | Back-main |
|
- | |||||
| 7 | 3203549 | Shield-lower Wall |
|
- | |||||
| 8 | 3203405 | Cover-lower Access |
|
- | |||||
| 9 | 3051368 | Cover-flue |
|
- | |||||
| 10 | 3131973 | Rack, Oven (2) |
|
- | |||||
| 11 | 3203397 | Screw, Level (4) |
|
- | |||||
| 12 | 3131570 | Cover Hng. Cutout (2) |
|
$ 7.35 | |||||
| 13 | 3200825 | Shield-wool Lower |
|
- | |||||
| 14 | 3051414 | Channel - Dr Hng (2) |
|
- | |||||
| 15 | 3203540 | Bottom Oven |
|
- | |||||
| 17 | 3013568 | Broiler Pan |
|
- | |||||
| 18 | 3131356 | Insert, Broiler Pan |
|
- | |||||
| 19 | 3161116 | Terminal Block |
|
- | |||||
| 20 | 08011708 | Ground Strap |
|
- | |||||
| 21 | 5304497424 | Probe-oven Temp (Replaces: 3204593) |
|
Immediately | $ 38.32 | ||||
| 22 | 3051162 | Glide-drawer (2) |
|
Immediately | $ 8.22 | ||||
| 23 | 3051367 | Clip-wire |
|
- | |||||
| 24 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 25 | 3200847 | Insulation, Bottom |
|
- | |||||
| 26 | 3051345 | Tube-oven Vent |
|
- | |||||
| 27 | 3204585 | Wire Glass Retainer |
|
- | |||||
| 28 | 3015361 | Latch Door |
|
- | |||||
| 29 | 3131357 | Handle, Latch |
|
- | |||||
| 30 | 3203218 | Knob-latch |
|
- | |||||
| 31 | 3051413 | Shield-latch |
|
- | |||||
| 32 | 3131593 | Shield, Bi Metal Latch |
|
- | |||||
| 33 | 3051733 | Fstnr-push On (3) |
|
- | |||||
| 34 | 3204592 | Switch-latching |
|
- | |||||
| 35 | 3203582 | Shield-rear Wall |
|
- | |||||
| 36 | 3014073 | Socket-oven Light |
|
- | |||||
| 37 | 3013071 | Light Bulb - Oven |
|
- | |||||
| 38 | 08067810 | Filter-catalyst |
|
- | |||||
| 39 | 08010606 | Retainer-catalyst |
|
- | |||||
| 40 | 3202622 | Switch-door |
|
- | |||||
| 41 | 3131289 | Brkt Light Switch |
|
- | |||||
| 42 | 3051495 | Rod, Light |
|
- | |||||
| 43 | 3051251 | Cover, Rod |
|
- | |||||
| 45 | 3200848 | Shield,heat ,lower |
|
- | |||||
| 46 | 3131252 | Shield, Lower Rear Wall |
|
- | |||||
| 47 | 3051254 | Box-flue |
|
- | |||||
| 48 | 3051242 | Angle-closure Lh |
|
- | |||||
| 48 | 3051243 | Angle-closure Rh |
|
- | |||||
| 49 | 3051142 | Clip-retainer (2) |
|
- | |||||
| *33163 | 3015337 | Gasket-vent |
|
- | |||||
| 27A | 3204582 | Insulation-back (non-illustrated) |
|
- | |||||
| 27B | 3131903 | Bumper |
|
$ 55.36 | |||||
| 27C | 3200833 | Insulation-wrap (non-illustrated) |
|
- | |||||
| 27D | 3131143 | Screw-hinge Mtg (6) (non-illustrated) |
|
- | |||||
| 27E | 08067783 | Nut, Hex, Brass (6) (non-illustrated) |
|
- | |||||
| 30A | 08013188 | Screw, Set, 10-24 X 3/16, Latch Knob |
|
- | |||||
| 45A | 3131304 | Insulation - Touch (non-illustrated) |
|
- | |||||
| 45B | 3131903 | Bumper |
|
$ 55.36 | |||||
| 45C | 3200834 | Shield-heat B/s (2) (non-illustrated) |
|
- | |||||
| 45D | 3200846 | Fstnr-edge Mt (2) (non-illustrated) |
|
- | |||||
| 45E | 3203550 | Plug-button (2) (non-illustrated) |
|
Immediately | $ 15.22 | ||||
| 45F | 3934056 | Anti-tip Kit (non-illustrated) |
|
- | |||||
| 45G | 3204525 | Brkt - Cable Mtg (non-illustrated) |
|
- |
