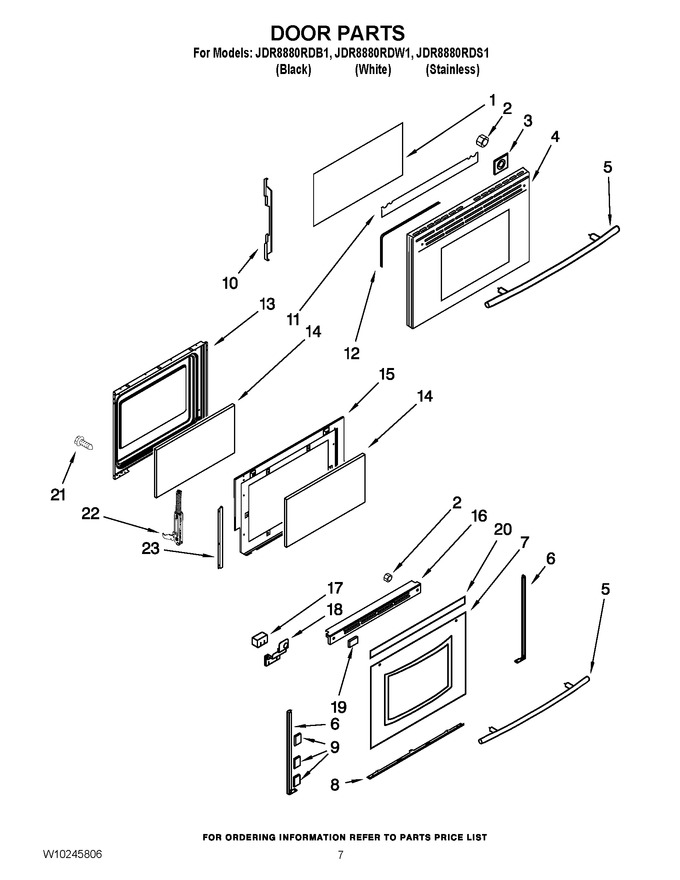

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7002P246-60		Insulation, Door				$ 58.49
2	WP3400029		Nut   (Replaces: 7103P176-60)			Immediately	$ 6.98
3	W11190816		Spacer, Handle   (Replaces: 3823F017-45)				$ 14.94
4	7760P218-60		Panel (stainless)				$ 239.97
5	7701P467-60		Handle, Door		Appelez-nous	-
6	3608F126-71		Trim, Side (white)				$ 34.81
6	3608F126-70		Trim, Side (black)				$ 58.04
7	7902P784-60		Glass, Door (white)		Appelez-nous	-
7	7902P792-60		Glass, Door (black)		Appelez-nous	-
8	3608F092-71		Trim, Bottom (white)				$ 55.22
8	3608F092-70		Trim, Bottom (black)				$ 66.03
9	W10208307		Tape, Double Sided (black)		Appelez-nous	-
9	W10208308		Tape, Double Sided (white)		Appelez-nous	-
10	3801F918-51		Bracket, Glass		Appelez-nous	-
11	4820F015-59		Insulation, Foil				$ 8.39
12	74008916		Gasket, Window   (Replaces: 7201P140-60)				$ 127.97
13	2402W297-19		Liner, Door				$ 152.41
14	7902P463-60		Glass, Inner		Appelez-nous	-
15	3601F380-51		Baffle, Door (stainless Models)				$ 25.83
16	3608F139-70		Trim, Top (black)				$ 12.86
16	3608F139-71		Trim, Top (white)		Appelez-nous	-
17	7002P484-60		Insulation, Door		Appelez-nous	-
18	3801P857-45		Bracket, Handle (right)		Appelez-nous	-
18	3801P858-45		Bracket, Handle (left)				$ 6.01
19	W10208318		Tape, (white)		Appelez-nous	-
20	W10208311		Tape, Foil 3``		Appelez-nous	-
21	WP4159193		Screw,(10-24x5/16)   (Replaces: 7101P282-60)				$ 4.29
22	74010546		Hinge, Door   (Replaces: 7106P124-60)			Immediately	$ 77.34
23	3801F886-51		Bracket, Glass				$ 38.25
