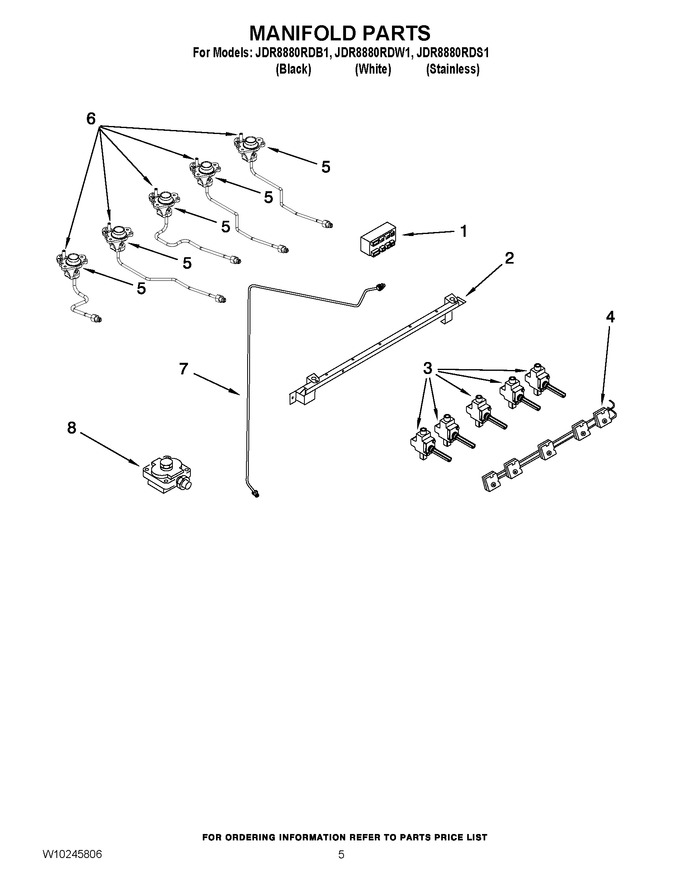

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009098 | Module, Spark (Replaces: 7431P053-60) |
|
$ 305.10 | |||||
| 2 | 7513P499-60 | Pipe, Manifold |
|
- | |||||
| 3 | WP7502P499-60 | Valve, Burner (5k Copreci (1)) (Replaces: 7502P499-60) |
|
$ 234.74 | |||||
| 3 | 74010751 | Valve, Burner (16k Copreci (1)) (Replaces: 7502P501-60) |
|
$ 242.95 | |||||
| 3 | 7502P500-60 | Valve, Burner (12k Copreci (3)) |
|
$ 118.46 | |||||
| 4 | WP74010753 | Harness, Switch (Replaces: 7403P983-60) |
|
$ 213.33 | |||||
| 5 | 7527P095-60 | Orifice Holder (right Front) |
|
- | |||||
| 5 | 7527P101-60 | Orifice Holder (left Front) |
|
- | |||||
| 5 | W10154209 | Orifice Holder (right Rear) (Replaces: 7527P124-60) |
|
$ 140.40 | |||||
| 5 | 7527P097-60 | Orifice Holder (center) |
|
$ 131.36 | |||||
| 5 | 7527P125-60 | Orifice Holder (left Rear) |
|
$ 72.52 | |||||
| 6 | WP74009958 | Ignitor, Top Burner (Replaces: 74009958) |
|
Immediately | $ 28.85 | ||||
| 7 | 7506P519-60 | Tubing, Supply |
|
- | |||||
| 8 | 7510P081-60 | Regulator, Pressure |
|
- |
