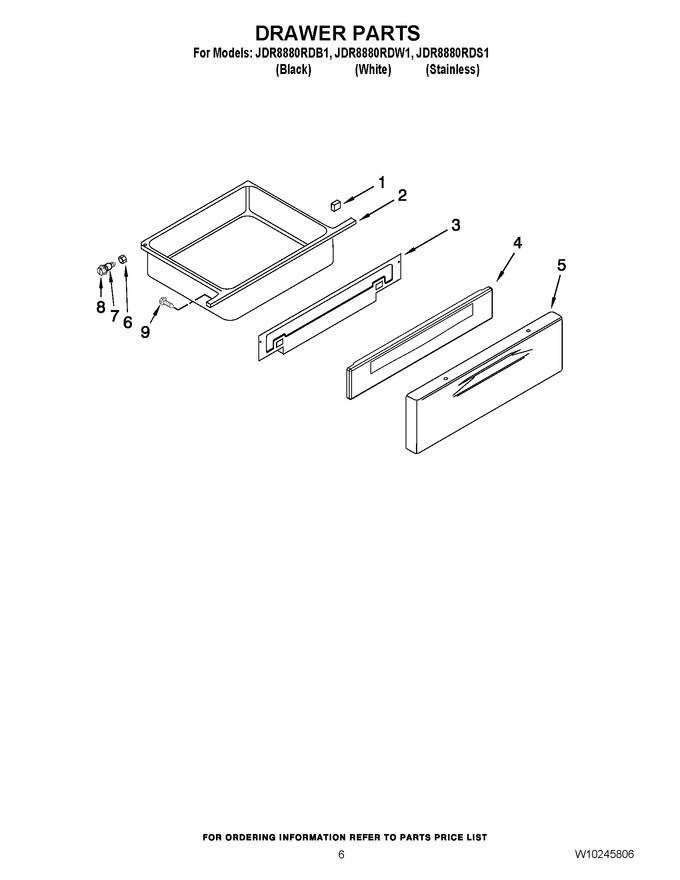

05 - Drawer Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74005546 | Spacer, Rubber (Replaces: 8010P130-60) |
|
$ 9.48 | |||||
| 2 | WP3405F037-80 | Drawer, Service (Replaces: 3405F037-80) |
|
$ 304.98 | |||||
| 3 | 3604P409-51 | Sheild, Heat |
|
- | |||||
| 4 | 2416F104-71 | Panel, Drawer (white) |
|
- | |||||
| 4 | 2416F104-70 | Panel, Drawer (black) |
|
$ 16.56 | |||||
| 5 | 7760P228-60 | Panel, Drawer (stainless Models) |
|
- | |||||
| 6 | WP488130 | Nut (Replaces: 7103P082-60) |
|
$ 6.27 | |||||
| 7 | 7118P032-60 | Shaft, Roller |
|
- | |||||
| 8 | WP74004078 | Roller, Drawer (Replaces: 8014P022-60) |
|
Immediately | $ 10.70 | ||||
| 9 | WP7101P072-60 | Screw (Replaces: 7101P072-60) |
|
$ 6.77 |
