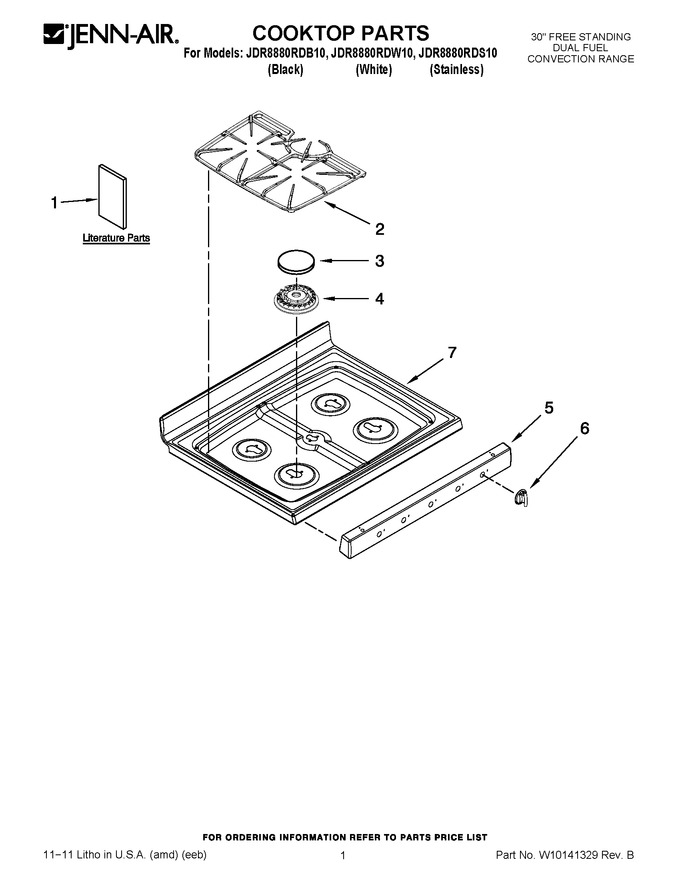

01 - Cooktop Parts
02 - Control Panel Parts
03 - Oven Parts
04 - Manifold Parts
05 - Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8113P622-60 | Manual, Owners |
|
- | |||||
| 1 | 8119P367-60 | Wiring Diagram |
|
- | |||||
| 2 | 74009143 | Grate, Double (black) |
|
$ 113.03 | |||||
| 2 | 74009145 | Grate, Double (gray) |
|
$ 111.94 | |||||
| 3 | WP74007420 | Cap, Burner (gray,(rf)) (Replaces: 74007420) |
|
$ 112.29 | |||||
| 3 | 74007422 | Cap, Burner (gray,(lr)) |
|
$ 30.56 | |||||
| 3 | WP74007925 | Cap, Burner (black,medium (3)) (Replaces: 74007925) |
|
$ 86.81 | |||||
| 3 | WP74007752 | Cap, Burner (gray,medium (3)) (Replaces: 74007752) |
|
$ 98.17 | |||||
| 3 | 74007414 | Cap, Burner (black, (lf)) |
|
- | |||||
| 3 | WP3191898 | Cap, Burner (black,(lr)) (Replaces: 74007416) |
|
$ 60.86 | |||||
| 4 | WPW10406878 | Base, Burner (16k, Rf) (Replaces: 74007413) |
|
Immediately | $ 92.12 | ||||
| 4 | WPW10406797 | Base, Burner (12k & 9.2k, (3)) (Replaces: 74007698) |
|
$ 79.64 | |||||
| 4 | WPW10406243 | Base, Burner (5k, Center (1)) (Replaces: 74007411) |
|
Immediately | $ 33.50 | ||||
| 5 | 74009139 | Panel, Manifold (white) |
|
- | |||||
| 5 | 74009138 | Panel, Manifold (black) |
|
- | |||||
| 5 | 74009146 | Panel, Manifold (stainless) |
|
- | |||||
| 6 | WP74009147 | Knob, Valve (Replaces: 74009147) |
|
Immediately | $ 41.66 | ||||
| 7 | 74009086 | Cooktop (black) |
|
- | |||||
| 7 | 74009087 | Cooktop (white) |
|
- |
