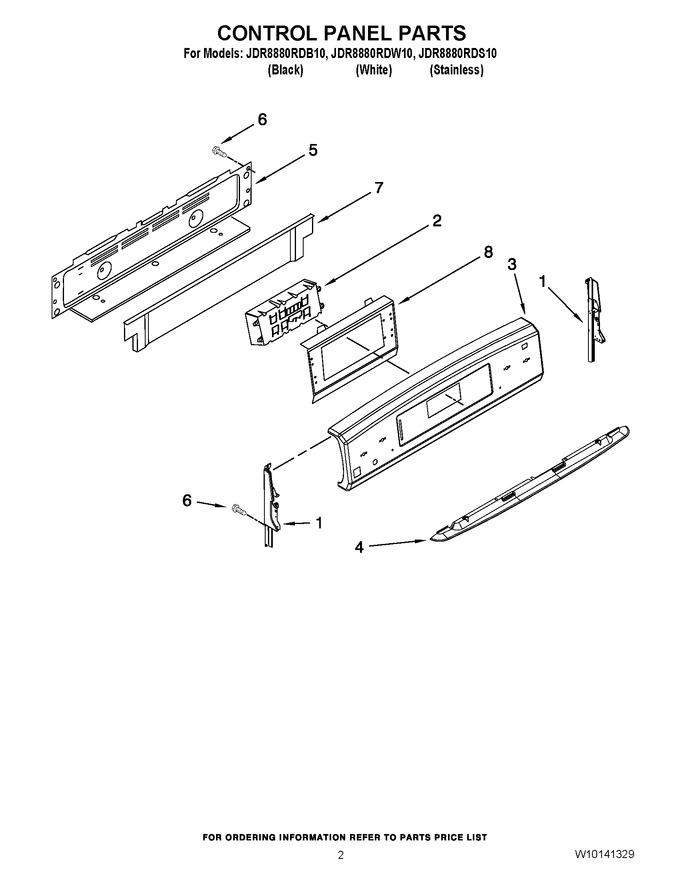

02 - Control Panel Parts
03 - Oven Parts
04 - Manifold Parts
05 - Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009022 | End Cap Black (right) |
|
- | |||||
| 1 | 74009023 | End Cap Black (left) |
|
$ 31.24 | |||||
| 2 | WP8507P333-60 | Control (Replaces: 8507P333-60) |
|
$ 334.59 | |||||
| 3 | 74011912 | Backgaurd Assy. (black) |
|
- | |||||
| 3 | 74011913 | Backgaurd Assy. (stainless) |
|
- | |||||
| 3 | WP7450P075-60 | Backgaurd Assy. (white) (Replaces: 74011914) |
|
$ 359.96 | |||||
| 4 | 74009203 | Sheild, Heat Visor (white) |
|
- | |||||
| 4 | 74009202 | Sheild, Heat Visor (black) |
|
- | |||||
| 5 | 74010983 | Cover, Rear Wire |
|
- | |||||
| 6 | W11233072 | Screw (Replaces: 74001530) |
|
Immediately | $ 12.62 | ||||
| 7 | 74009444 | Shield, Vent |
|
- | |||||
| 8 | 74011982 | Bracket, Control |
|
- |
