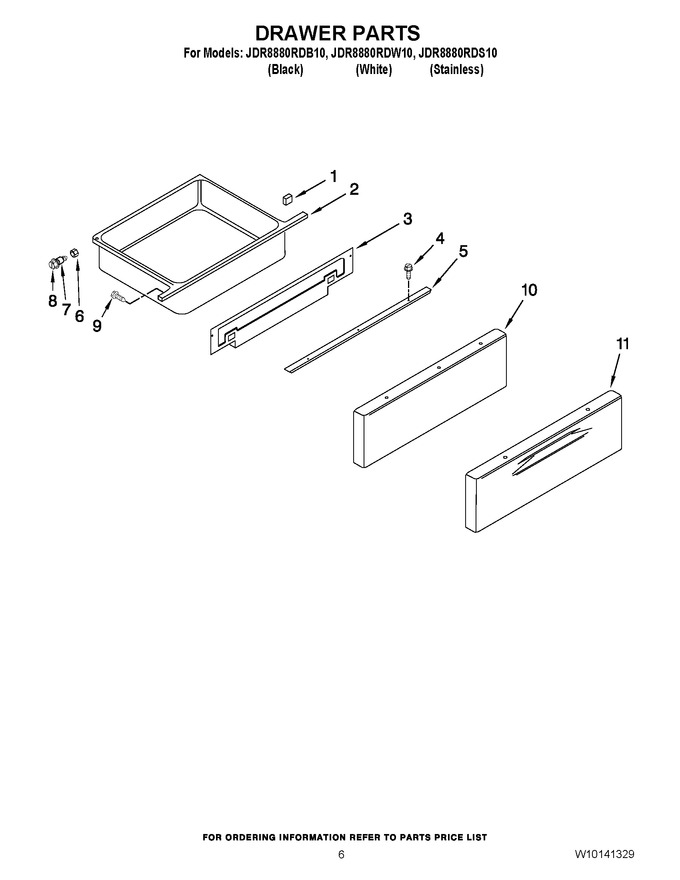

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74005546 | Spacer, Rubber (Replaces: 74005546) |
|
$ 9.48 | |||||
| 2 | WP3405F037-80 | Drawer, Service (Replaces: 74008877) |
|
$ 304.98 | |||||
| 3 | 74009105 | Sheild, Heat |
|
- | |||||
| 4 | W11233072 | Screw (Replaces: 74009268) |
|
Immediately | $ 12.62 | ||||
| 5 | 5171P936-60 | Handle, Drawer (Replaces: 74008908) |
|
$ 203.04 | |||||
| 6 | WP488130 | Nut (Replaces: 7103P082-60) |
|
$ 6.27 | |||||
| 7 | 74005231 | Shaft, Roller |
|
$ 9.23 | |||||
| 8 | WP74004078 | Roller, Drawer (Replaces: 74004078) |
|
Immediately | $ 10.70 | ||||
| 9 | WP7101P072-60 | Screw (Replaces: 7101P072-60) |
|
$ 6.77 | |||||
| 10 | 74008856 | Panel, Drawer (white) |
|
- | |||||
| 10 | 74009035 | Panel, Drawer (black) |
|
- | |||||
| 11 | 74009518 | Panel, Drawer (stainless Models) |
|
- |
