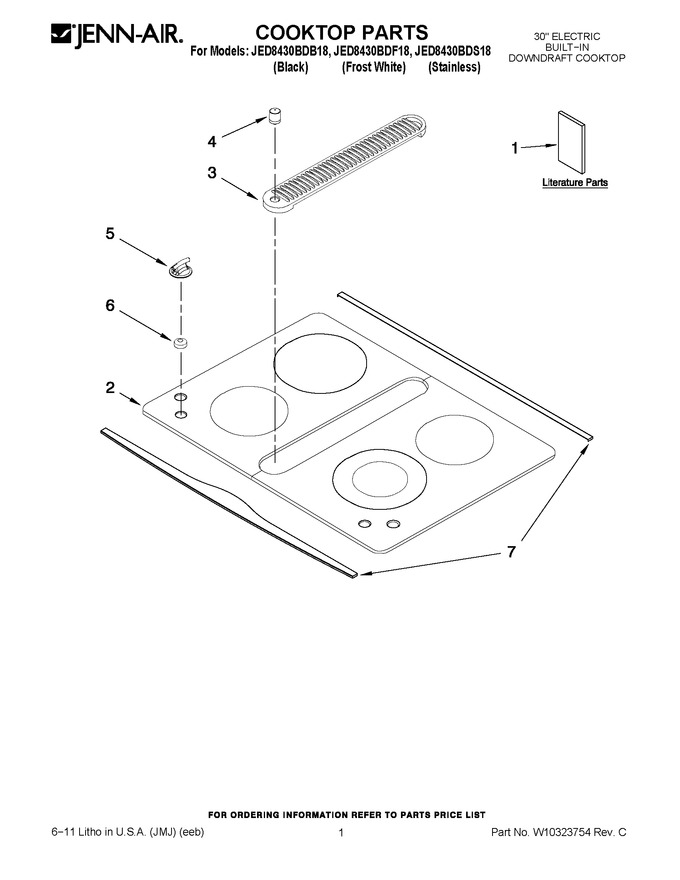

01 - Cooktop Parts
02 - Blower Unit Parts
03 - Burner Box Assembly
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P419-60 | Installation Instructions |
|
- | |||||
| 1 | 8119P243-60 | Wiring Diagram (english) |
|
- | |||||
| 1 | 8119P244-60 | Wiring Diagram (french) |
|
- | |||||
| 1 | 8111P528-60 | Use & Care Guide |
|
- | |||||
| 1 | 8106P068-60 | Card, Flow Tester |
|
$ 6.65 | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | 7920P141-60 | Top, Main (white) |
|
- | |||||
| 2 | 7920P202-60 | Top, Main (black) |
|
$ 836.25 | |||||
| 3 | 7772P035-60 | Grill, Air (gray) |
|
- | |||||
| 3 | 7772P034-60 | Grill, Air (black) |
|
- | |||||
| 4 | WP7739P121-60 | Knob, Fan (gray) (Replaces: 7739P121-60) |
|
$ 53.54 | |||||
| 4 | 7739P122-60 | Knob, Fan (black) |
|
$ 13.53 | |||||
| 5 | WP74010839 | Knob, Inf. Switch (Replaces: 7737P372-60) |
|
Immediately | $ 22.25 | ||||
| 6 | WPY706102 | Grommet, Switch (Replaces: 8008P042-60) |
|
Immediately | $ 6.78 | ||||
| 7 | W10168883 | Trim, Rear Ss |
|
$ 56.79 | |||||
| 7 | 7746P120-60 | Trim, Front Ss |
|
- |
