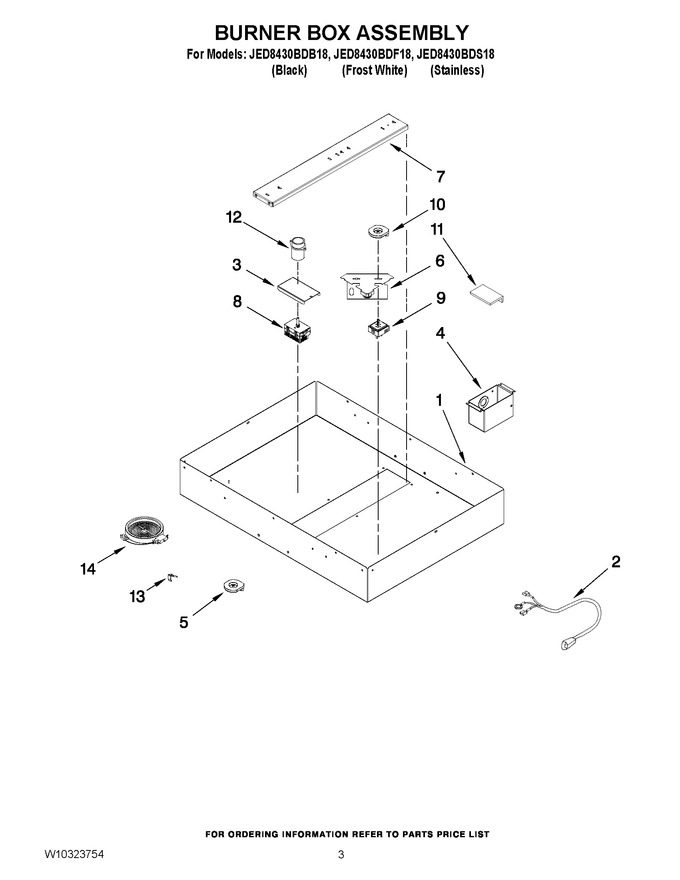

03 - Burner Box Assembly
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4011F412-51 | Bottom, Box |
|
$ 35.48 | |||||
| 2 | 7402P102-60 | Cord, Ran Recep. |
|
- | |||||
| 3 | 4005F525-51 | Cover, Junct. Box |
|
- | |||||
| 4 | 4006W165-51 | Box, Junction |
|
- | |||||
| 5 | 7422P006-60 | Light, Hot |
|
- | |||||
| 6 | 3801F626-51 | Brkt., Switch |
|
- | |||||
| 7 | 3605F280-51 | Plate, Elem. Spt. |
|
- | |||||
| 8 | WP74009254 | Switch, Fan Cntrl. (Replaces: 7403P832-60) |
|
Immediately | $ 192.13 | ||||
| 9 | WP74008248 | Switch, (dual) (Replaces: 7403P831-60) |
|
Immediately | $ 118.71 | ||||
| 9 | WP74011242 | Switch, Infinate (Replaces: 7450P015-60) |
|
Immediately | $ 75.89 | ||||
| 10 | 8019P019-60 | Relief, Strain |
|
- | |||||
| 11 | 3801F607-80 | Brkt., Filler Rear |
|
- | |||||
| 12 | WP74005965 | Knob Sleeve (Replaces: 8018P015-60) |
|
$ 53.95 | |||||
| 13 | 74007134 | Spring, Element (Replaces: 7803P087-60) |
|
$ 10.51 | |||||
| 14 | 7406P447-60 | Element (left Front) |
|
- | |||||
| 14 | 7406P449-60 | Element (left Rear) |
|
- | |||||
| 14 | WPW10162365 | Element (right Rear) (Replaces: W10162365) |
|
Immediately | $ 301.51 | ||||
| 14 | 7406P448-60 | Element (right Front) |
|
- |
