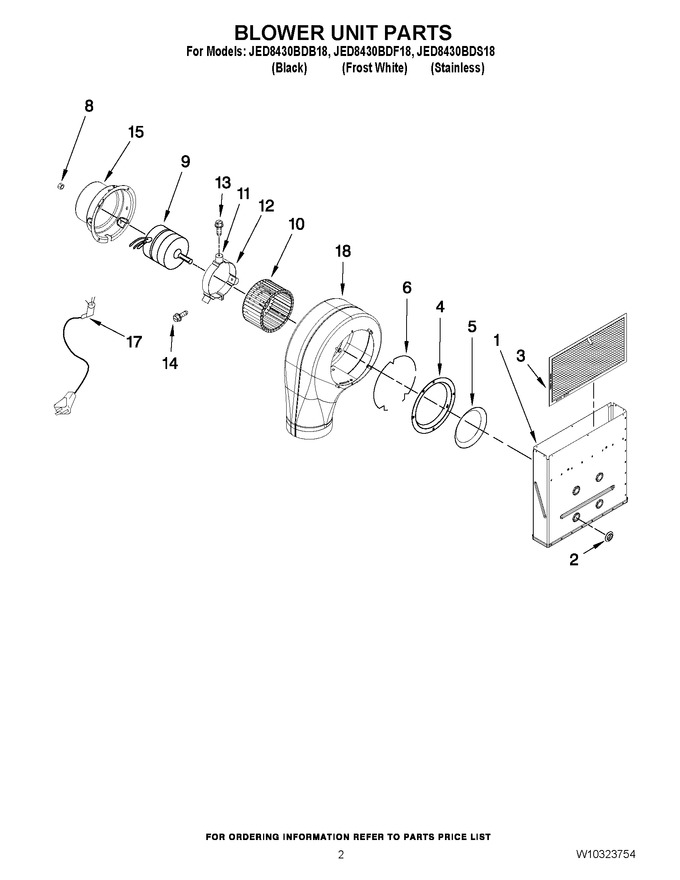

02 - Blower Unit Parts
03 - Burner Box Assembly
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2801W028-80 | Assembly,plenum |
|
- | |||||
| 2 | 7718P023-60 | Plug, Hole |
|
$ 8.98 | |||||
| 3 | WPY706012 | Filter (Replaces: 8310P004-60) |
|
Immediately | $ 57.29 | ||||
| 4 | 4026F008-51 | Ring, Inlet |
|
$ 7.43 | |||||
| 5 | 4026F009-51 | Ring, Restrictor |
|
$ 51.50 | |||||
| 6 | 8038P003-60 | Retainer |
|
$ 9.13 | |||||
| 8 | WP7103P027-60 | Locknut (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 | ||||
| 9 | 7409P011-60 | Motor, Blower |
|
$ 240.65 | |||||
| 10 | WPY707985 | Wheel, Blower (Replaces: 7114P005-60) |
|
Immediately | $ 145.55 | ||||
| 11 | WP71003558 | Isolator, Motor (Replaces: 8038P002-60) |
|
$ 11.47 | |||||
| 12 | 3415F003-51 | Band, Motor |
|
$ 41.94 | |||||
| 13 | 7101P326-60 | Screw |
|
- | |||||
| 14 | WP4159193 | Screw (Replaces: 7101P115-60) |
|
$ 4.29 | |||||
| 15 | 4005F513-80 | Cover, Motor |
|
$ 33.10 | |||||
| 17 | 7402P096-60 | Cord, Power |
|
- | |||||
| 18 | 2822W001-80 | Scroll, Blower |
|
- |
