SELECT A DIAGRAM

01 - Tub And Basket, Literature

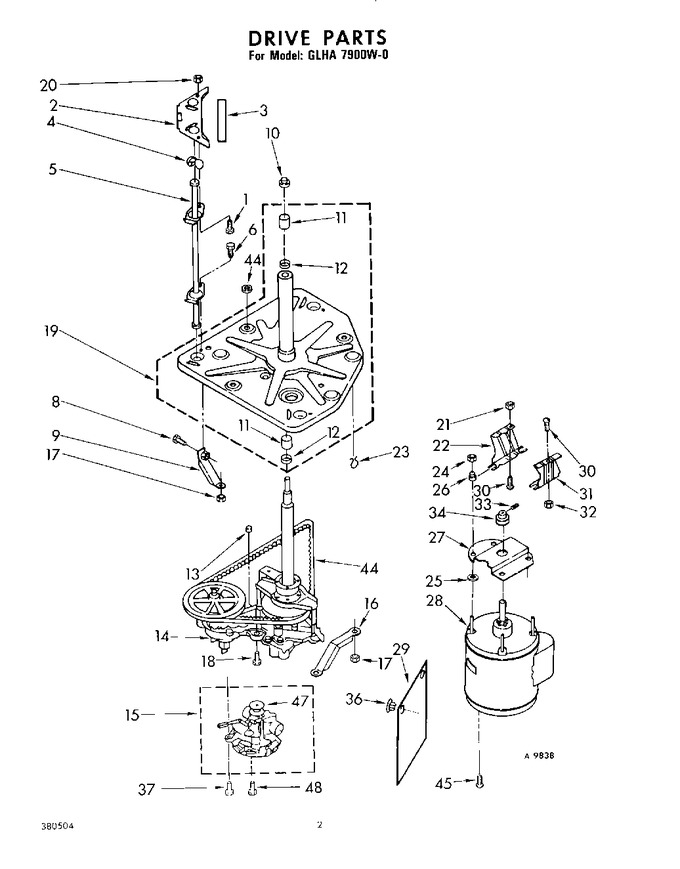

02 - Drive


03 - Top And Console


04 - Cabinet, Optional


05 - Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	126358		Bolt, 5/16 X 1 (3)		Appelez-nous	-
1	126211		Bolt, 5/16 X 5/8 (2)		Appelez-nous	-
1	353770		Bolt, Snubber (1)		Appelez-nous	-
2	94114		Cover, Suspension Rod (r.r.)		Appelez-nous	-
2	352143		Cover, Suspension Rod (l.r.)		Appelez-nous	-
2	353230		Cover, Suspension Rod (l.f.)		Appelez-nous	-
3	352434		Pad, Gusset Cover		Appelez-nous	-
4	91073		Ball, Suspension (6)		Appelez-nous	-
5	82584		Rod, Suspension (3)		Appelez-nous	-
6	98048		Bolt, 5/16-24		Appelez-nous	-
8	WP3400516		Screw, 5/16-24 X 3/4   (Replaces: 98062)			Immediately	$ 6.47
9	353301		Brace, Baseplate		Appelez-nous	-
10	WP8577376		Seal, Center Post   (Replaces: 356934)			Immediately	$ 6.47
11	354195		Bearing, Lower		Appelez-nous	-
11	WP8546455		Bearing, Upper   (Replaces: 54207)			Immediately	$ 25.16
12	W11095997		Seal, Shaft   (Replaces: 357409)			Immediately	$ 20.07
13	DE81-09976A		Spacer   (Replaces: 92429)				$ 143.31
14	358365		Gearcase Assembly (refer To Sf-342)		Appelez-nous	-
15	350365		Pump Assembly (refer To Sf-342)   (Replaces: 358036)			Immediately	$ 116.12
16	351499		Brace, Motor		Appelez-nous	-
16	351500		Brace, Manifold		Appelez-nous	-
17	96101		Nut, 5/16-24		Appelez-nous	-
18	90877		Screw, 3/8-24 X 2		Appelez-nous	-
19	358949		Baseplate Assembly		Appelez-nous	-
20	90984		Nut, 5/16-18		Appelez-nous	-
21	96016		Locknut, 3/8-16		Appelez-nous	-
22	85286		Bracket, Adjusting		Appelez-nous	-
23	16515		Clip				$ 17.60
24	98023		Nut, 10-23		Appelez-nous	-
25	DE81-07434A		Washer   (Replaces: 92217)				$ 136.39
26	19138		Grommet (4)		Appelez-nous	-
27	356217		Shield, Motor (upper)		Appelez-nous	-
28	US335		Motor, 50/60 Hz. (general Electric) (start Switch Not Serviceable)   (Replaces: 82053)			Immediately	$ 7.88
29	356214		Shield, Bottom Motor		Appelez-nous	-
30	98537		Bolt, 3/8-16 X 3/4		Appelez-nous	-
31	93549		Bracket, Pivoting		Appelez-nous	-
32	95721		Nut, 3/8-16		Appelez-nous	-
33	355345		Setscrew, 5/16-18 X 1/2				$ 5.04
34	93219		Pulley, 50 Hz.		Appelez-nous	-
36	302143		Boot, Retainer		Appelez-nous	-
37	386011		Bolt, 5/16-18 X 1   (Replaces: 96867)		Appelez-nous	-
44	WP95405		Belt, Main Drive   (Replaces: 95405)				$ 46.08
45	WP3390631		Screw, Motor Ground   (Replaces: 9420601)				$ 7.04
47	16113		Pulley, Pump		Appelez-nous	-
48	355612		Screw, 5/16-18 X 1-3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
