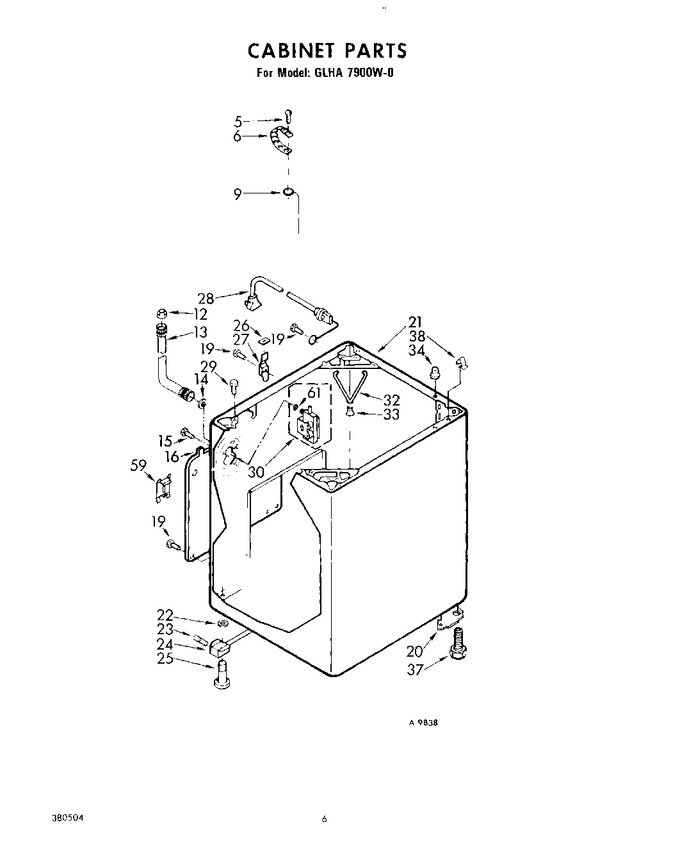

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	132848		Screw, 10-24 X 1		Appelez-nous	-
6	22965		Strap, Ground		Appelez-nous	-
9	364089		Wire, Ground		Appelez-nous	-
12	285452A		Screen, Filter   (Replaces: 355521)			Immediately	$ 8.31
13	WP89503		Hose, Inlet   (Replaces: 81339)			Immediately	$ 21.68
14	WP16123		Washer, Rubber   (Replaces: 16123)				$ 6.93
15	WP3351614		Screw, 10 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
16	85279		Panel, Rear		Appelez-nous	-
19	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
20	356459		Plate, Gusset (2)		Appelez-nous	-
21	374420		Cabinet (new Avocado)		Appelez-nous	-
21	374418		Cabinet (almond)		Appelez-nous	-
21	374419		Cabinet (coffee)		Appelez-nous	-
21	374421		Cabinet (golden Harvest)		Appelez-nous	-
21	368761		Cabinet (white)		Appelez-nous	-
22	98411		Washer, Friction		Appelez-nous	-
23	WP62837		Pin, Knurled   (Replaces: 98439)				$ 9.66
24	75587		Link, Leveling		Appelez-nous	-
25	95879		Foot, Rear (2)		Appelez-nous	-
26	18849		Pad, Hinge				$ 18.13
27	18775		Hinge, R.h.		Appelez-nous	-
27	92657		Hinge, L.h.		Appelez-nous	-
28	92667		Cord, Power		Appelez-nous	-
29	WP681414		Screw, 10-16 X 1/2   (Replaces: 359262)			Immediately	$ 7.07
30	358277		Valve, Mixing (alternate)			Immediately	$ 78.87
30	358971		Valve, Mixing (alternate) (serviced Only As Complete Assemblies)		Appelez-nous	-
32	358336		Spring, Snubber   (Replaces: 357977)			Immediately	$ 4.80
33	358336		Snubber			Immediately	$ 4.80
34	98669		Locator, Top				$ 12.03
37	WP367594		Foot, Front (2)   (Replaces: 367594)			Immediately	$ 18.46
38	WP18776		Lock, Front Top   (Replaces: 18776)			Immediately	$ 11.41
59	354179		Plug, Cabinet		Appelez-nous	-
61	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
61	350941		Leveler (thinner)		Appelez-nous	-
61	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
61	978883		Almond (uncut)		Appelez-nous	-
61	261887		Coffee (uncut)		Appelez-nous	-
61	261889		New Avocado (uncut)		Appelez-nous	-
61	261891		Xgolden Harvest (uncut)		Appelez-nous	-
61	WP96160		Screen, Filter   (Replaces: 96160)				$ 10.54
61	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
61	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
61	799351		Thinner (1 Gal.)		Appelez-nous	-
61	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
61	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
61	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
61	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
61	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
61	261886		Coffee		Appelez-nous	-
61	261888		New Avocado		Appelez-nous	-
61	261890		Golden Harvest		Appelez-nous	-
