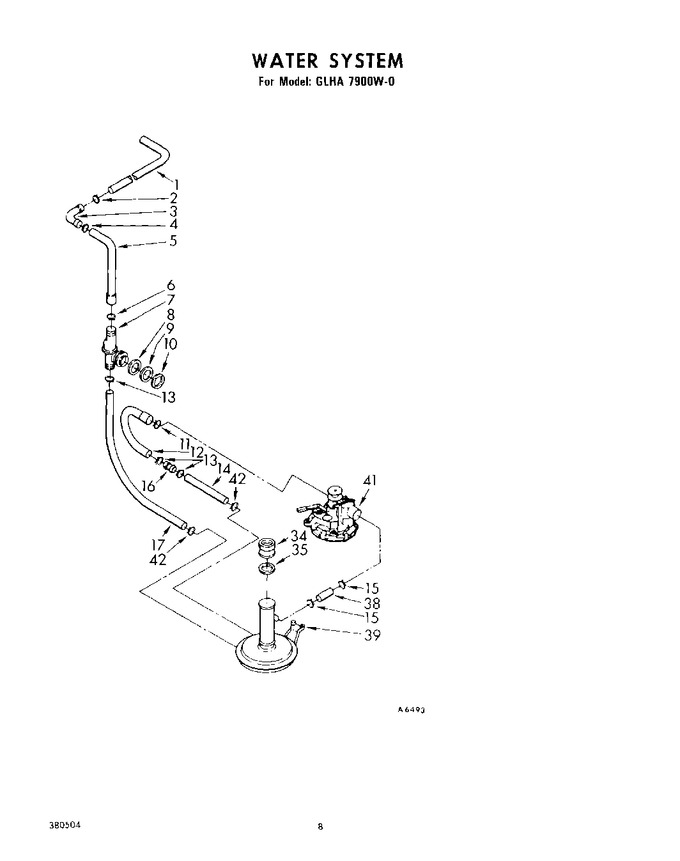

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	96865		Hose, Gooseneck		Appelez-nous	-
2	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
3	95440		Connector, Hose				$ 22.55
4	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 7.55
5	96125		Hose, Side Check To Drain		Appelez-nous	-
6	WP356138		Clamp, Hose (alternate)   (Replaces: 272856)			Immediately	$ 7.67
6	WP356138		Clamp, Hose (alternate)   (Replaces: 356138)			Immediately	$ 7.67
6	WP356138		Clamp, Hose (alternate)   (Replaces: 353095)			Immediately	$ 7.67
7	88677		Valve, Side Check		Appelez-nous	-
8	DE81-04739A		Washer, Rubber   (Replaces: 92235)				$ 74.11
9	DE81-03541A		Washer, Fiber   (Replaces: 92232)				$ 107.38
10	DE81-06164A		Nut, Spanner   (Replaces: 92229)				$ 125.78
11	WP616099		Clamp, Hose (alternate)   (Replaces: 272859)			Immediately	$ 7.03
11	WP616099		Clamp, Hose (alternate)   (Replaces: 353098)			Immediately	$ 7.03
11	WP616099		Clamp, Hose (alternate)   (Replaces: 370448)			Immediately	$ 7.03
12	355152		Hose		Appelez-nous	-
13	WP285655		Clamp, Hose (alternate)   (Replaces: 370446)			Immediately	$ 7.55
13	272857		Clamp, Hose (alternate)		Appelez-nous	-
13	353096		Clamp, Hose (alternate)		Appelez-nous	-
14	356167		Hose, Pump To Filter		Appelez-nous	-
15	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
16	WP16272		Connector, Hose   (Replaces: 16272)				$ 7.04
17	355151		Hose, Side Check To Filter		Appelez-nous	-
34	93553		Hose, Tub Outlet		Appelez-nous	-
35	942132		Clamp, Hose		Appelez-nous	-
38	DE81-06162A		Hose, Pump To Manifold   (Replaces: 92231)				$ 78.75
39	363358		Manifold & Filter Assembly		Appelez-nous	-
41	350365		Pump Assembly (refer To Sf-342)   (Replaces: 358036)			Immediately	$ 116.12
42	WP285655		Clamp, Hose   (Replaces: 371500)			Immediately	$ 7.55
