SELECT A DIAGRAM

Diagram for 01 - Cooktop Parts
01 - Cooktop Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Blower Assembly Parts
03 - Blower Assembly Parts

Diagram for 04 - Chassis Parts
04 - Chassis Parts

Diagram for 05 - Internal Oven Parts
05 - Internal Oven Parts

Diagram for 06 - Drawer Parts
06 - Drawer Parts

Diagram for 07 - Door Parts
07 - Door Parts

Diagram for 08 - Optional Parts (not Included)
08 - Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8113P751-60 Use & Care Guide Appelez-nous -
1 8119P419-60 Diagram, Wiring Appelez-nous -
1 9762761 Brochure, Tips Safe Cooking Appelez-nous -
1 8101P700-60 Instructions, Installation Appelez-nous -
2 W10199501 Cooktop Appelez-nous -
3 W10823711 Element (lf/rr)   (Replaces: 7406P375-60) In-Stock Immediately $ 183.95

4 WP7101P498-60 Screw   (Replaces: 7101P498-60) Special Order $ 6.74

5 8010P152-60 Spacer, Rubber Appelez-nous -
6 W10823692 Element (lr)   (Replaces: 7406P431-60) In-Stock Immediately $ 204.83

7 8004P093-60 Support, Element Special Order $ 10.61

8 7772P050-60 Grill, Air Appelez-nous -
9 8255P412-60 Block, Element Support Special Order $ 31.52

10 W10270588 Insulator, Dual Elem Bridge Appelez-nous -
11 W10823724 Element (rf)   (Replaces: 7406P501-60) In-Stock Immediately $ 333.25


    View Diagram in Separate Window     Print Icon   Print Part List

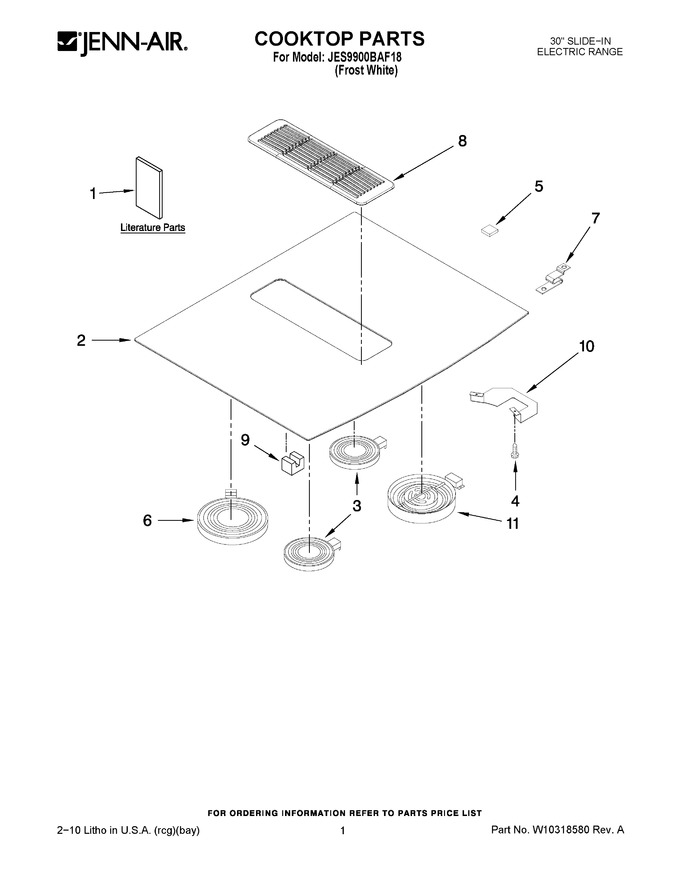

Diagram for JES9900BAF18
