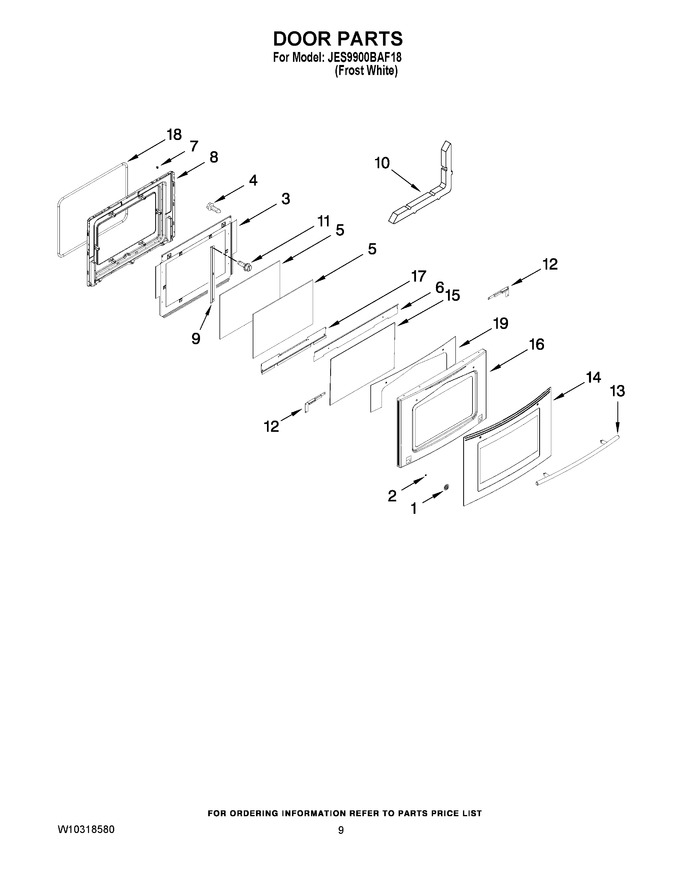

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7109P082-60		Washer		Appelez-nous	-
2	WP3400029		Nut, 10-32   (Replaces: 7103P176-60)			Immediately	$ 6.98
3	3601F373-51		Baffle, Oven Door				$ 244.22
4	W11347848		Screw, 8ab X1/2   (Replaces: 7101P376-60)				$ 12.20
5	74003645		Glass, Inner   (Replaces: 7902P436-60)			Immediately	$ 162.53
6	3604F418-51		Shield				$ 77.46
7	WP74001574		Nut, Snap   (Replaces: 7103P141-60)			Immediately	$ 9.91
8	2402W312-19		Lining, Door				$ 144.50
9	3801F886-51		Bracket, Glass				$ 38.25
10	7002P246-60		Insulation, Door				$ 58.49
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 7101P426-60)			Immediately	$ 7.04
12	3804F308-51		Retainer, Glass (left)		Appelez-nous	-
12	3804F307-51		Retainer, Glass (right)				$ 109.75
13	WP74008625		Handle, Door   (Replaces: 7701P473-60)				$ 229.64
14	7922P050-60		Glass, Door		Appelez-nous	-
15	7902P768-60		Glass, Coated		Appelez-nous	-
16	3603F075-71		Frame, Door				$ 390.67
17	3804F317-80		Retainer,glass Btm				$ 65.61
18	WPW10162384		Seal, Door   (Replaces: W10162384)			Immediately	$ 77.61
19	7002P465-60		Insulation, Foil		Appelez-nous	-
