SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts

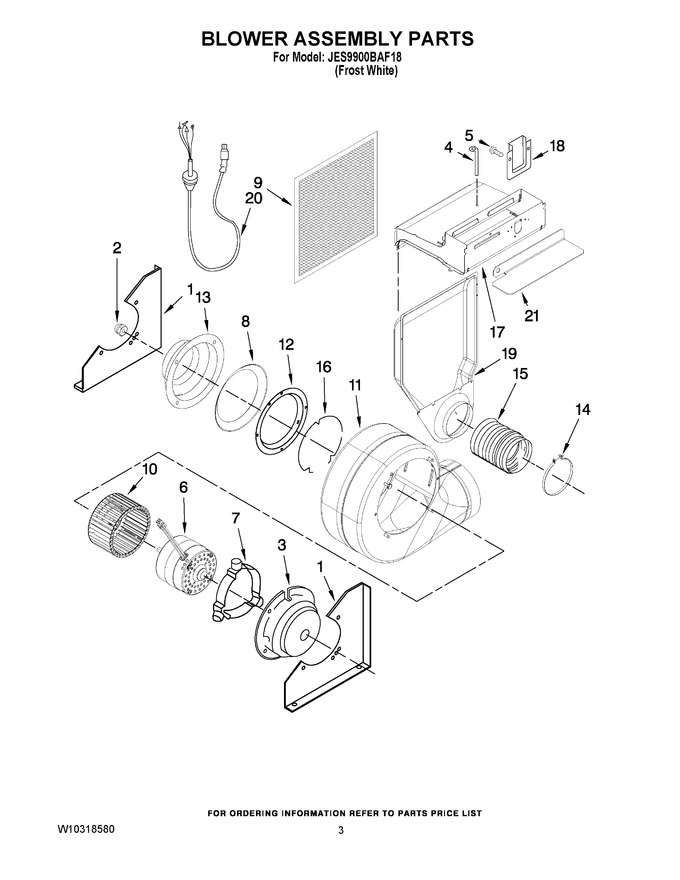

03 - Blower Assembly Parts


04 - Chassis Parts


05 - Internal Oven Parts


06 - Drawer Parts


07 - Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3801F631-51		Bracket, Mount   (Replaces: 3801F631-51)				$ 70.98
2	WPY707702		Locknut   (Replaces: 7103P162-60)			Immediately	$ 6.26
3	4005F537-80		Cover, Motor		Appelez-nous	-
4	7809P030-60		Stop, Filter		Appelez-nous	-
5	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
6	WPW10201322		Motor   (Replaces: W10201322)				$ 306.88
7	5700D526-60		Assy, Motor Band				$ 64.65
8	4026F009-51		Ring, Restrictor				$ 51.50
9	WP71002111		Filter, Grease   (Replaces: 8310P006-60)			Immediately	$ 33.49
10	WPY707985		Wheel, Blower   (Replaces: 7114P005-60)			Immediately	$ 145.55
11	2822W001-80		Assy, Scroll Blwr		Appelez-nous	-
12	4026F008-51		Ring, Inlet				$ 7.43
13	2818F001-80		Adapter, Ring Restrictor				$ 37.13
14	7111P047-60		Clamp, Hose				$ 7.64
15	8032P003-60		Duct, Flexible		Appelez-nous	-
16	8038P003-60		Retainer				$ 9.13
17	2801W035-80		Assy., Plenum				$ 277.85
18	4005F779-80		Cover, Vent				$ 87.36
19	2801L037-80		Plenum, Side				$ 109.85
20	WP7402P104-60		Cord, Power   (Replaces: 7402P104-60)				$ 52.91
21	8404P011-60		Shield, Plenum		Appelez-nous	-
