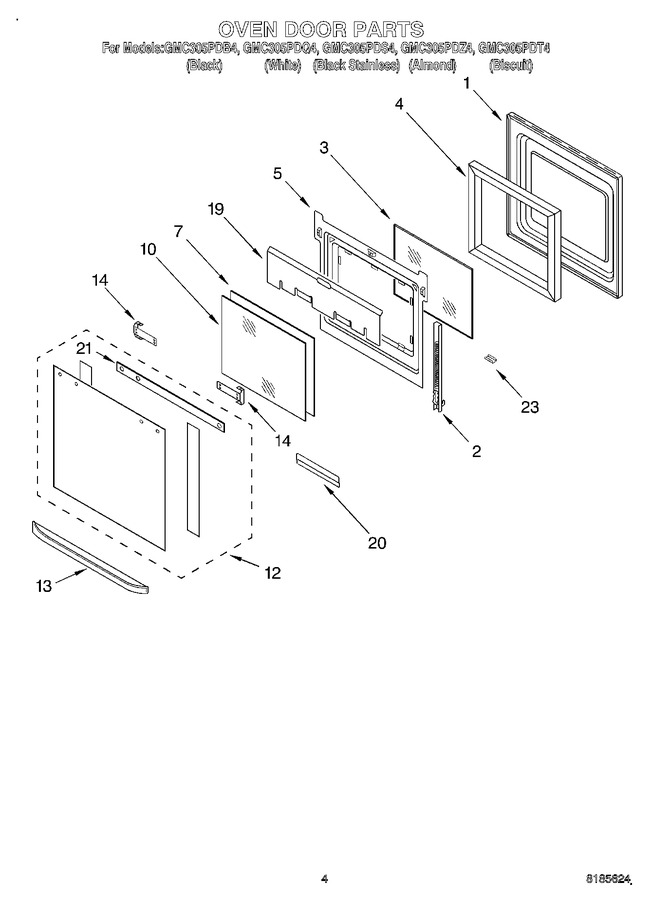

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451719		Door Liner		Appelez-nous	-
2	WP4455525		Hinge, Door   (Replaces: 4455525)			Immediately	$ 69.96
2	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
2	WP4455526		Hinge, For Black Stainless Model   (Replaces: 4455526)			Immediately	$ 71.55
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
4	WP4451722		Insulation, Door And Bottom Door   (Replaces: 4451722)				$ 162.66
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
5	4451671		Retainer, Glass		Appelez-nous	-
7	4455257		Glass, Inner				$ 85.45
10	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 151.10
12	4452067		Assy, Door Glass (almond Model)		Appelez-nous	-
12	4452066		Door Glass (white Model)		Appelez-nous	-
12	4452065		Door Glass (black Model)		Appelez-nous	-
12	WP9759074		Door Glass (black Stainless)   (Replaces: 4452479)				$ 376.41
12	4452859		Door Glass (biscuit)		Appelez-nous	-
13	4448854		Door Handle (black)				$ 74.07
13	4452860		Handle, Door (biscuit)		Appelez-nous	-
13	4448855		Door Handle (white)		Appelez-nous	-
13	4448856		Door Handle (almond)		Appelez-nous	-
14	W10276642		Screw   (Replaces: 4451040)				$ 5.49
14	4450813		Bracket, Handle				$ 24.20
19	4450362		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	4451668		Retainer, Glass-clip		Appelez-nous	-
21	4451674		Seal, Door Top		Appelez-nous	-
23	4452119		Retainer, Glass (biscuit)		Appelez-nous	-
23	4450864		Retainer, Glass (white)		Appelez-nous	-
23	4450865		Retainer, Glass (almond)		Appelez-nous	-
23	4450863		Retainer, Glass (black)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
