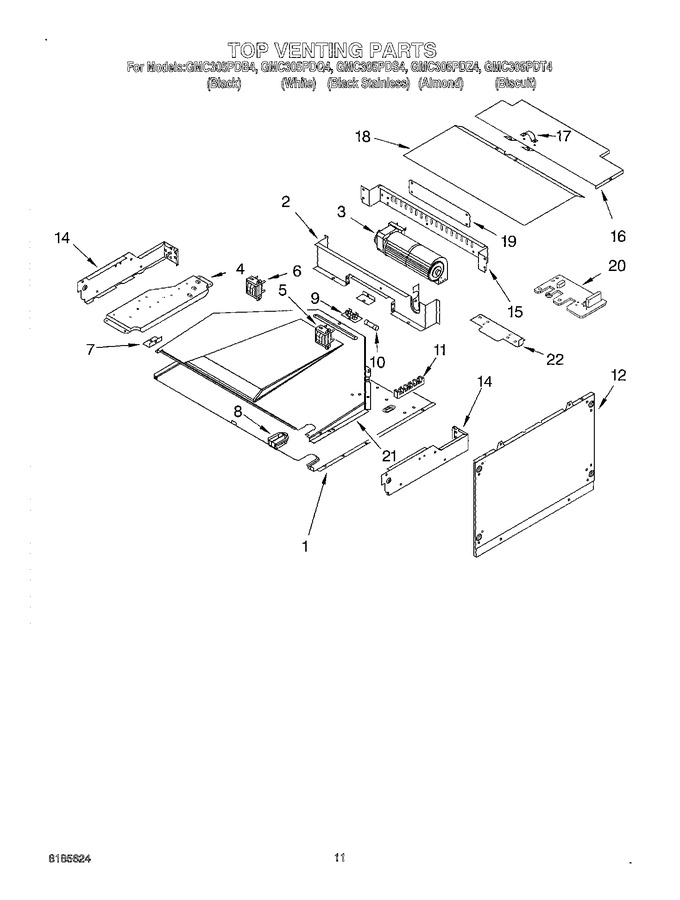

SELECT A DIAGRAM

01 - Oven, Literature


02 - Control Panel


03 - Oven Door


04 - Latch


05 - Internal Oven


06 - Cabinet And Stirrer


07 - Microwave Compartment


08 - Microwave Door


09 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
1	4450378		Cover, Top		Appelez-nous	-
1	WP4450118		Nut   (Replaces: 4450118)				$ 7.16
2	4448935		Baffle, Blower		Appelez-nous	-
3	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
3	WPW10016550		Blower   (Replaces: 4451744)			Immediately	$ 255.27
4	4451789		Plate, Mounting		Appelez-nous	-
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
5	WP9760588		Transformer, (lights)   (Replaces: 6610122)				$ 237.07
6	4451891		Transformer, Control		Appelez-nous	-
7	4450027		Bracket, Duct		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
8	4449964		Grommet		Appelez-nous	-
8	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
8	WP112432		Nut   (Replaces: 112432)				$ 7.16
9	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
9	4454949		Holder, Fuse				$ 81.63
10	WPW10017410		Fuse   (Replaces: 4454976)			Immediately	$ 19.05
11	W11684512		Screw   (Replaces: 3400080)				$ 12.69
11	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 27.12
12	4452260		Spacer, Foam		Appelez-nous	-
12	4452559		Side, Combo		Appelez-nous	-
12	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
14	W10755214		Side, Control Top (right)   (Replaces: 4451597)		Appelez-nous	-
14	W10790240		Side, Control Top (left)   (Replaces: 4451598)				$ 67.21
14	WP4449809		Side, Control Top (screw)   (Replaces: 4449809)			Immediately	$ 6.47
15	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
15	4452244		Back, Control		Appelez-nous	-
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
16	4450551		Cover, Top Rear		Appelez-nous	-
17	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
17	4448664		Clamp				$ 18.35
18	WP4452367		Cover, Top Front   (Replaces: 4452367)				$ 68.53
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
19	4452247		Plate, Cover		Appelez-nous	-
20	WP4451985		Suppressor   (Replaces: 4451985)				$ 148.69
21	4451634		Duct, Exhaust		Appelez-nous	-
22	WPW10339879		Tie, Cable   (Replaces: 4454835)				$ 7.11
22	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
22	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
22	4378945		Filler Kit (wh)		Appelez-nous	-
22	4378946		Filler Kit (al)		Appelez-nous	-
22	814381		Kit, Pin Hinge				$ 7.73
22	WP4448950		Screw, Installation   (Replaces: 4448950)				$ 6.80
22	4451926		Harness, Latch		Appelez-nous	-
22	4455740		Harness, Main		Appelez-nous	-
22	4450831		Ground (m/w)				$ 7.43
22	4450800		Screw				$ 11.55
22	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
22	4450950		Conduit, Combo		Appelez-nous	-
22	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
22	4452222		Spacer, Harness		Appelez-nous	-
22	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
22	4455191		Plate, Service		Appelez-nous	-
22	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 23.85
22	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
22	261900		Citrine White				$ 51.34
22	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)			Immediately	$ 51.34
22	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
22	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
22	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
22	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
22	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
22	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
22	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
22	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
22	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
22	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
22	242831		Wire (14 Ga. 200 C Red)				$ 342.23
22	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
22	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
22	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
22	4378944		Filler Kit (bl)				$ 468.78
