Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP4449040 Screw   (Replaces: 4449040) Special Order $ 6.78

1 4451759 Vent, Exhaust Special Order $ 90.01

2 W10491987 Seal, Foam   (Replaces: 4451758) In-Stock Immediately $ 6.98

9 4450408 Baffle, Rear Appelez-nous -
9 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

10 4451896 Latch Assembly Special Order $ 163.41

11 4452224 Solenoid Appelez-nous -
12 4452312 Microswitch N.c. Special Order $ 90.43

13 4451426 Microswitch Appelez-nous -
14 4451537 Spring, Latch Appelez-nous -
16 WPW10016550 Blower   (Replaces: 6610168) In-Stock Immediately $ 255.27

17 4455178 Elbow, Vent- Top Special Order $ 13.30

18 4455177 Elbow, Vent- Bottom Special Order $ 9.77


    View Diagram in Separate Window     Print Icon   Print Part List

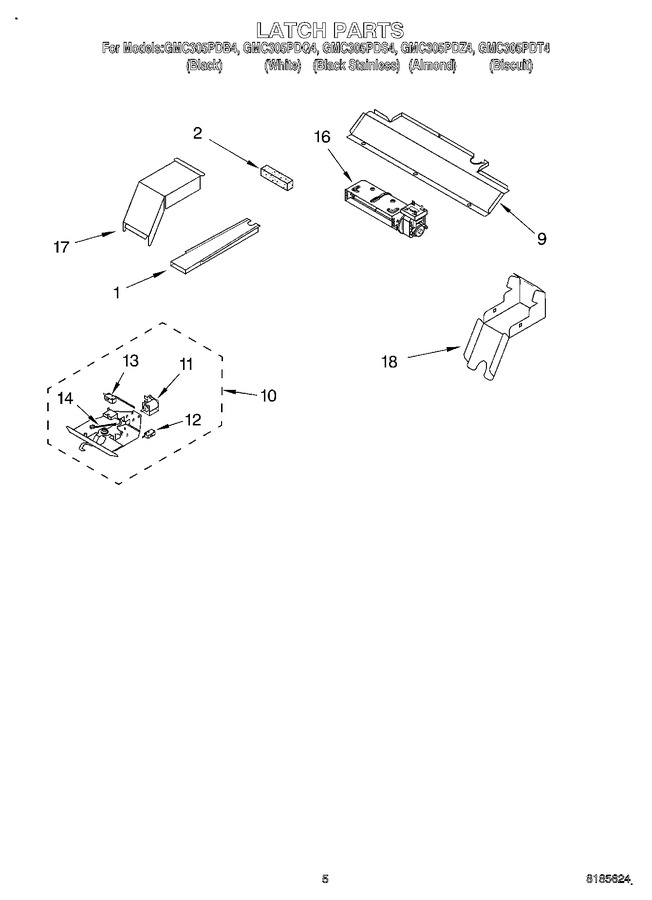

Diagram for GMC305PDB4
